| The VisionSwitch32 uses the very latest technology to provide a complete 32 x 32 video or audio cross point switch on a single PCI plug-in card. The card can be installed in any standard PC that has a free PCI slot. VisionSwitch32 is supplied with an easy to use Windows application program for switch programming. A special version of VisionSwitch32 is also available for integration with the Datapath iH4-PRO/DIG multiscreen graphics cards. This version expands the number of video inputs to the iH4 from 4 inputs as standard to 32 inputs.
 |
- PCI plug-in card occupying 2 PCI slots for the stand alone (SA) version (pictured left) and a single slot for the iH (H) version
- 32 x 32 Video or Audio matrix switch
- Any input can be routed to any number of outputs. No restrictions on input to output routing
- Windows application program for simple switch set-up. Save and recall switch settings
- Support for Windows®2000 and Windows®XP Professional
- Use with Mosaic to increase the number of inputs and allow Mosaic windows to view any input
|
VisionSwitch32 Models
The Datapath VisionSwitch32 is available in two models:
VisionSwitch32-H. Used in conjunction with the Datapath iH4-PRO and iH4-DIG cards.
|
VisionSwitch32-SA. Used as a stand alone general purose video switch or it can be used in conjunction with the Datapath Mosaic card.
|
<TOP>
Connecting with the Mosaic Card
You can also use the VisionSwitch32-SA with the Mosaic card to increase the number of video inputs and enable each Mosaic window to display any of the inputs on a video wall.
Examples of connecting VisionSwitch32-SA:

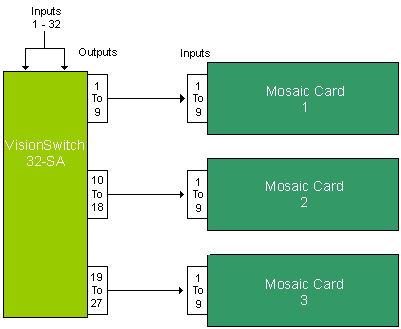

Connecting 1 x VisionSwitch32-SA to 3 x Mosaic Cards:

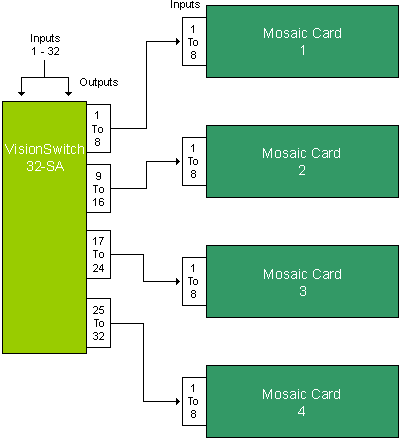

Connecting 1 x VisionSwitch32-SA to 4 x Mosaic Cards:
Connect the VisionSwitch32-SA outputs to thMosaic Inputs using BNC-cables and the BNC to BNC adapter.
<TOP>
Cables
VisionSwitch32-H

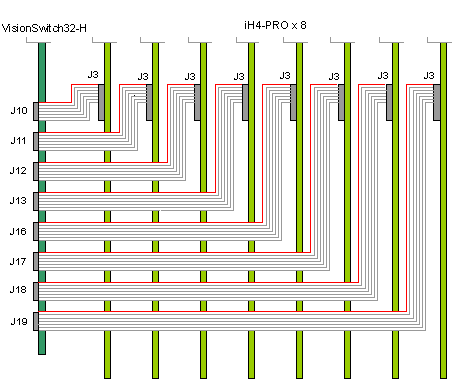

VisionSwitch32-H is supplied with two multi-way splitter cables for connecting video inputs and a VS32RC-set ribbon cables for internal connection to the iH4 cards. The diagram bellow shows how the VisionSwitch32-H is connected to 8 x iH4-PRO cards:
VisionSwitch32-SA
VisionSwitch32-SA is supplied with 4 multi-way splitter cables for connecting video inputs and outputs. Each cable comprises of a 26way D plug connected to 16 BNC sockets via individual co-ax cables. (Cable length is 600mm)
<TOP>
iH4 Configurations:
When VisionSwitch32-H is used with the iH4-PRO/DIG graphics adapter then the following configurations are possible:
No of iH4-PRO/DIG cards and No of overlays supported |
No of VisionSwitch32-H Cards |
No of video inputs available to the iH4 Video overlays |
Effective Video Switch Size |
| 1 card, 4 overlays |
1 |
32 |
32 x 4 |
| 2 cards, 8 overlays |
1 |
32 |
32 x 8 |
| 3 cards, 12 overlays |
1 |
32 |
32 x 12 |
| 4 cards, 16 overlays |
1 |
32 |
32 x 16 |
| 5 card, 20 overlays |
1 |
32 |
32 x 20 |
| 6 cards, 24 overlays |
1 |
32 |
32 x 24 |
| 7 cards, 28 overlays |
1 |
32 |
32 x 28 |
| 8 cards, 32 overlays |
1 |
32 |
32 x 32 |
The iH driver detects the presence of the VisionSwitch32-H and automatically controls the video switch, expanding the input capabilities for each video overlay from 4 inputs, as standard, to 32.
<TOP>
Specification:
PCI level 2.2 compliant (3.3v/5v) |
|
Measurements |
220 x 112mm |
Maximum Input Level |
2V rms |
Input Impedence |
75ohms or 4.7kohms (Selected by on card jumper links) |
Crosstalk |
-80dB at 20kHz |
THD |
0.002% at 20kHz |
Gain |
x1 into 70 ohms |
Power |
6.5W
+5V at 150mA
+12V at 300mA
+12V at 180mA |
Switching Time |
50ns |
For details on how to purchase this product contact Digivision at: vendite@digivision.it
