The Mosaic-HQ provides a combination of four standard and four high quality video windows for video wall applications that require high quality video overlays. The overlay windows can be positioned and sized anywhere on the video wall.
 |
-

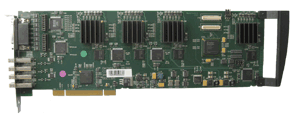

PCI video capture card providing eight Mosaic video windows when combined with the Datapath Vantage4-SIP graphics adapter.
-
Four HD and four SD Mosaic Video Windows.
-
High quality windows support composite, S-Video, YPrPb or RGB video formats.
-
Standard definition windows support composite or S-Video formats.
-
Built-in 8 x 8 video matrix switch for composite or S-Video inputs.
-
Four high quality video windows with de-interlacing and noise reduction.
-
Four standard definition video windows.
-
Support for up to 4 cards per system providing 32 video windows. (16 HD and 16 SD)
-
|
SUPPORTED FORMATS
Four High Quality Window
Each high quality window can be derived from one of the following choices:
- 8 x Composite or S-Video signals via the Video Matrix Switch.
- 1 x Component YPrPb or RGB source via a dedicated cable.
The four high quality video windows provide de-interlacing and noise reduction for superb quality video overlays.
HQ Resolutions Supported:
| PAL |
567i 720x576 |
| NTSC |
480i 720x480 |
| HD |
720P 1280x720 |
| HD |
1080i 1920x1080 |
| RGB |
640x480, 800x600, 1024x768 and 1280x1024 |
|
Four Standard Defintion Windows
Each standard definition window can be selected via the Video Matrix Switch from one of the following:
- 8 x Composite video.
- 8 x S-Video.
The four standard defintion video windows provide the same functionality and quality as the Mosaic-SQ16.
SD Resolutions Supported:
| PAL |
576i 720x576 |
| NTSC |
480i 720x480 |
|
Maximum Displayed Resolutions
| SD Video Window |
720x288 |
| HD Video Window |
1280x1024 |
| RGB Video Window |
1280x1024 |
Rear Panel Connector and Cables
- 1 x 26 Way D for 8 x composite or 8 x S-Video inputs. Supplied with BNC16 splitter cable.
- 4 x 10 Way connectors for RGB or Component. Supplied with 4 x MRGB cables as standard or 4 x MBNC cables or other specific combinations on request.
|
|
Specification:
| Card Type |
PCI 2.2 compliant adapter |
| Card Size |
106mm x 319mm Full size |
| Max No of overlay windows |
4 x high quality and 4 x standard defintion |
| Power requirements |
+3.3V at 2A ,+5V at 3A, +12V at 250mA |
| Power Consumption |
25 Watts |
| Operating temperature |
0 to 35 Deg C ambient |
| Storage temperature |
-20 to +70 Deg C |
| Relative humidity |
5% to 90% non-condensing |
| Number of Composite Inputs |
8 |
| Number of S-Video inputs |
8 |
| Number of YPrPb |
4 |
| Number of RGB |
4 |
| Video window update rates |
25 or 30 frames/sec |
Model Numbers:
Mosaic-HQ - Eight Channel video capture card including cables.
Accessories (Supplied)
- 1 x SIP-Cable.
- 1 x BNC16 16 Way BNC splitter cable.
- 4 x MRGB-Cable RGB cable with 15 Way D connector.
Optional
- MBNC-Cable YPrPb Component video input cable.
|
Typical Applications & Market Areas:
Video Walls - Data Walls - Control Rooms - Information Displays - Desktop Multi-screen
