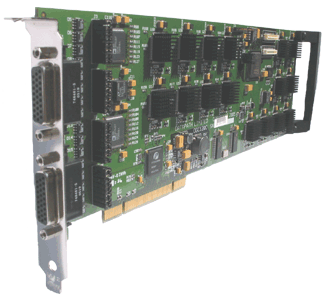

The Datapath Mosaic-SQ16 is the ultimate video capture card providing superior performance and virtually unrestricted video capture capabilities with a single or mult-screen configuration. Video windows can be placed anywhere across the multi-screen system and also arbitarily sized or maximised over the entire wall.
 |
- 16 channel video capture add-on card for the iH4-SIP or Vantage4-SIP graphics adapters
- Interfaces directly to the iH4-SIP or Vantage4-SIP using Datapath's proprietry 5Gb/s Streams Video bus
- Use up to 8 Mosaic-SQ16 cards to provide a maximum of 128 video windows
- Video windows can be positioned and sized anywhere on the multi-screen desktop
- 16 high quality video decoders and video down scalers
- On board 32 x 16 video matrix switch
|
SIP Digital Stream Bus
The Datapath SIP video bus operates at 5Gb/s and is used to broadcast the captured video to the graphics adapters. Each graphics adapter has 4 video overlay processors, one per display channel. The overlay processors select the required video channel from the SIP video stream, crops and scales the video window onto the output channel. Each overlay processor has 16 scalers and cropping units allowing up to 16 video windows to be positioned on each display output. (Maximum 64 windows per graphics adapter)
Mosaic-SQ16 Specification
| Card Format |
32bit 66Mhz PCI adapter |
| Card Size |
105mm x 310mm Full size |
| Max No of capture channels |
16 |
| Max capture resolution per channel |
720 x 288 |
| Supported video formats |
NTSC. PAL, SECAM and S-video |
| Inputs per window |
16 composite or 16 S-video |
| Video window update rate |
Real time 25/30 frames per sec (PAL/NTSC) |
| Max current at 3.3V |
2.10A |
| Max current at 1.40V |
1.40A |
| Max power |
23.73 Watts |
| Operating temperature |
0 to 35 Deg C ambient |
| Storage temperature |
-20 to +70 Deg C |
| Relative humidity |
5% to 90% non-condensing |
Models:
Mosaic-SQ16 - Mosaic-SQ16 card with 2 x BNC16 splitter cables and 1 x SIP-Cable.
Mosaic-SQ16-NC - Mosaic-SQ16 card with no cables
|
