Features:

    - Eight Composite/S-Video inputs
    - Maximum Video Capture Resolution 720x576
    - Supports Deinterlacing
    - Data transfer at 480MB/s

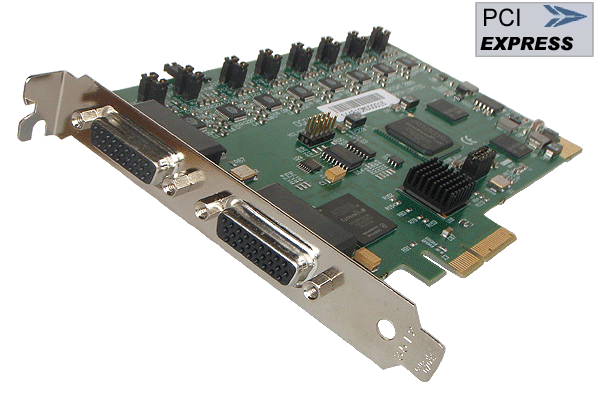

The VisionSD8 is an 8 channel PCI express video capture card. The card supports PAL, NTSC and SECAM
in bothcomposite and S-video input formats. VisionSD8 supports deinterlaced video capture and display
at 25/30 frames/sec for real-time video overlays.


Software Included:

    - Wall Control - presents a representational window of the entire display wall showing position and size
      of video windows
    - Software Development Kit with example application



Streaming Support:

DirectShow drivers for WDM Streaming driver supports the following applications, to encode,
record and stream video over networks or the Internet:

    - Microsoft Media Encoder®
    - VLC
    - StreamPix
    - VirtualDub
    - Adobe Flash Encoder
    - AMCap
    - Any other DirectShow encoding software


Advanced Features:

    - High performance DMA to system memory or direct to graphics memory with
      scatter gather
    - On board processor for real time mode and sync detection
    - When used with the Datapath range of graphics adapters, the CPU load is negligible even if
    - the image is being upscaled to a video wall, resulting in real time performance
    - Dynamic Input Source Selection
    - Adjustments for Colour, brightness and contrast.
    - Administrator Mode
    - The Vision application program is also built into the Datapath Wall Control software
       for video wall systems



Video Walls:

The Vision range of capture cards are fully integrated with the Datapath family of Video Wall display
products. The VisionSD8 captures a Composite or S-Video output from one source and then displays
it as an independent application on your Video Wall, this is done in real time.

The VisionSD8 has a powerful software application to automatically configure the timing and the
format of the input source and display the captured data.


Additional Applications:

The VisionSD8, a stand alone PCIe x4 plug in card, delivers extreme performance with 480MB/s
transfer bus bandwidth. This industry beating performance makes the VisionSD8 ideal for a wide
range of applications including:

    - Multi-display presentation software: Recommended by industry leaders Dataton WATCHOUT™
    - Digital Signage
    - Machine Vision:  Acquire high resolution camera outputs
    - Voyage Data recorders: Capture radar images
    - Simulation/Military: Acquire high resolution video and simulation for command and control

Board Format:

Four Lane PCI express.

Card Size:

110mm x 170mm.

Maximum Capture Resolution:

8x720x576x16bit.

Maximum Number of Cards per System:

16 (128 video capture channels).

Frame Buffer Memory:

32 MB.

Max current at +3.3V:

0.25A.

Max current at +12V:

0.6A.

Max power:

8 Watts.

Operating Temperature:

0 to 35 deg C.

Storage Temperature:

-20 to 70 deg C.

Relative Humidity:

5% to 90% non-condensing.

MTBF:

100,000 hrs
