Features:

     -  Component HD up to 1080P at 60 frames per second (1)
     -  HDMI up to 1080P (1, 2, 3)
     -  DVI up to 1920 x 1200RGB/VGA up to 2048 x 1536
     -  Four Composite/S-Video inputs
     -  Maximum Video Capture Resolution 720x576
     -  Supports Deinterlacing
     -  Data transfer at 480MB/s

1  Requires optional Component HD-DVI adapter
2  Audio not supported
3  HDCP not supported

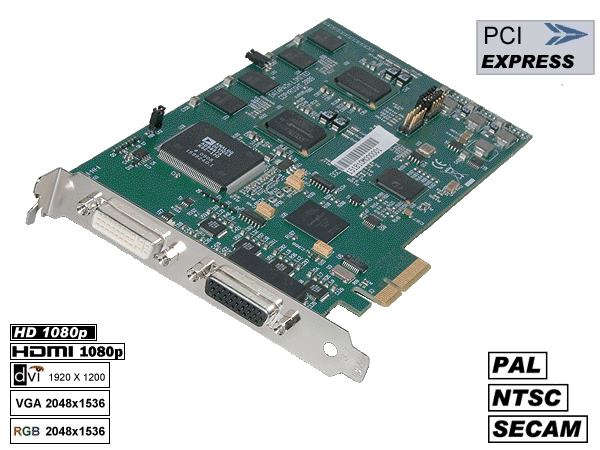

The VisionSD4+1 is an ideal solution for applications that require the capture of an
RGB/DVI source simultaneously with up to four SD video sources.  Typical applications include:

    - Viewing Analog or DVI sources from PCs, MACs, Industrial/medical equipment,
       cameras and  other video equipment
    - Streaming video applications
    - Video/Data Wall Controllers



Software Included:

    - Wall Control - presents a representational window of the entire display wall
       showingposition and size of video windows
    - Software Development Kit with example application

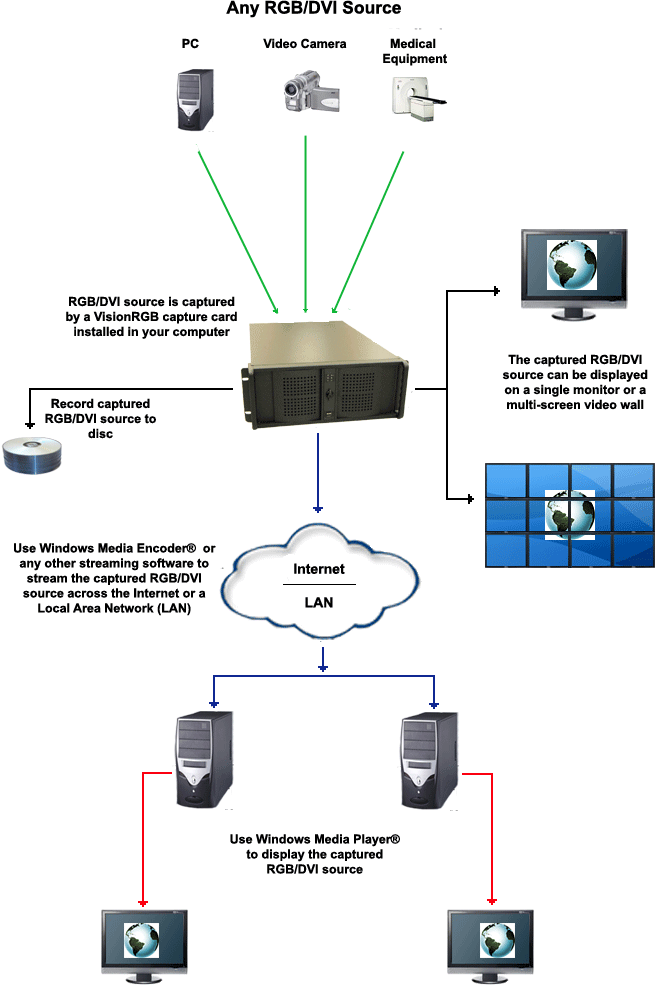

Streaming Support:

DirectShow drivers for WDM Streaming driver supports the following applications,
to encode, record and stream video over networks or the Internet:

     - Microsoft Media Encoder®
     - VLC
     - StreamPix
     - VirtualDub
     - Adobe Flash Encoder
     - AMCap
     - Any other DirectShow encoding software






Advanced Features:

    -  High performance DMA to system memory or direct to graphics memory with scatter
       gather
    - On board processor for real time mode and sync detection
    - When used with the Datapath range of graphics adapters, the CPU load is negligible
       even if  the image is being upscaled to a video wall, resulting in real time performance
    - The VisionSD4+1 captures data at a maximum pixel rate of 340MHz. Once captured,
       the data  is converted to either 555, 565 or 888 pixel and YUV modes display formats
       and then transferred  over the PCI bus to host memory, for display on the desktop
    - Dynamic Input Source Selection
    - Administrator Mode
    - Update Indicator
    - The VisionSD4+1 application program is also built into the Datapath Wall Control software
       for video wall systems



Video Walls:

The Vision range of capture cards are fully integrated with the Datapath family of Video Wall
display products. The VisionSD4+1 captures the display output (component HD, HDMI,
analog RGB or single link DVI) from one source and then displays it as an independent
application on your Video Wall.This is done in real time, enabling you to view data from PCs,
MACs, industrial/medical equipment,cameras and other video equipment.

The VisionSD4+1 has a DVI connector for feeding an independent data source directly into
your main PC. The VisionSD4+1 captures the HD/HDMI/RGB/DVI data and stores it in an
on-board video buffer. This data is then copied using Direct Memory Access (DMA) to the
host system for display. The VisionSD4+1 has a powerful software application to automatically
configure the timing and the format of the input source and display the captured data.

Additional Applications:

The VisionSD4+1, a stand alone PCIe x4 plug in card, delivers extreme performance with 480MB/s
transfer bus bandwidth. This industry beating performance makes the Vision series ideal for a wide
range of applications including:

    - Medical Imaging: Capture legacy RGB modalities
    - Multi-display presentation software: Recommended by industry leaders Dataton WATCHOUT™
    - Digital Signage: Integrated by C-nario into their world class, open platform digital signage
       software solutions
    - Machine Vision:  Acquire high resolution camera outputs
    - Voyage Data recorders: Capture radar images
    - Simulation/Military: Acquire high resolution video and simulation for command and control

Application Guide
