Time Base Corrector

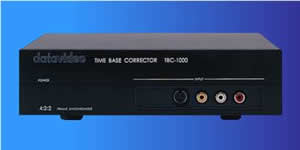

Tbc 1000 e' un apparecchio in grado di correggere e squadrare un segnale video instabile proveniente da una qualsiasi fonte; TBC 1000 e' molto adatto per fornire un segnale in perfetto sync alla vostra stazione di video editing o di produzione di dvd professionali.

TBC 1000 e' dotato di un ingresso Y/C (S-Vhs), un ingresso video composito e audio stereo; ha fino a 4 uscite contemporanee in video composito e Y/C (S-Vhs) con audio stereo.


Caratteristiche principali:

- Self contained- stand alone

- Compatible with VHS, VHS-C, S-VHS, S-VHS-C Video 8,
Hi 8 and Digital 8 format

- Digital frame synchronization with full frame memory

- Re-generates all synchronization signals to stabilize the video

- Auto-detects NTSC or PAL format

- Wide bandwidth- 4.5MHz in Y/C and 3.5MHz in composite

- 8-bit video resolution- 4:2:2 sampling rate DP <1 Degree – DG
less than 2%

- Low noise- S/N ratio >50dB

- Built in DA with 4 outputs

Specifiche tecniche:

Ingressi

    1 - Y/C Video (S-video) 4-pin 75 ohm DIN connector
    1 - Composite video 75 ohm RCA connector, level: 1.0 VP-P
    1 – Stereo Audio RCA Connectors, Impedance: 100 Kohm

Uscite
    4 - Y/C Video (S-video) 4-pin 75 ohm DIN connector
    4 - Composite video 75 ohm RCA connector,
    level: 1.0 VP-P/Unity
    4  – Stereo Audio RCA Connectors, Impedance: 1K ohm,
    Level: unity

Generali

    Frequency response S-video 4.5 MHz +/- 3 dB
    DG, DP +/- 2%, 1
    S/N Ratio >50dB
   Component Y.U.V. 4:2:2 8-bit, Y:  13.5 MHz
    Single channel full frame Time Base corrector
    Auto Detects NTSC and PAL signals
    Power requirement DC +5V/700mA or +12V/150mA
    Ambient Temperature range 32’-131’F  (0’-55’C)
    Ambient Humidity <90%
