Appian Rushmore 4 uscite VGA / DVI
(modello Typhoon 2 uscite VGA / DVI)
 NB : Nella confezione vi sono già i cavi per monitor  DVI.

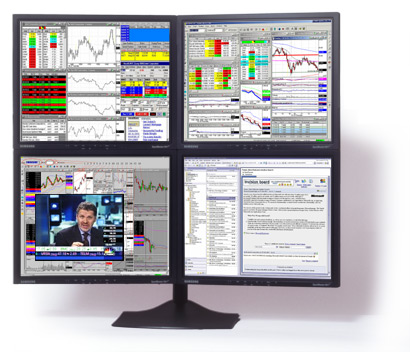

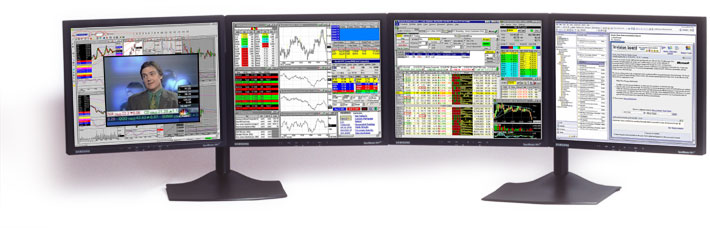

Extend your desktop to four monitors from one PCI slot

rushmore

Extend your desktop to four monitors from one PCI slot 1/2-length PCI form factor compatible with leading small-desktop PCs Up to 64 MB DDR SDRAM Two ATI Radeon VE multi-display graphics accelerators DirectX® , DirectDraw™ , Direct3D™ and OpenGL® support across displays Integrated DVI support

TYPHOON / APPIAN  dual monitor VGA / DVI
N.B. Esiste anche un modello di scheda tipo RUSHMORE con bus PCI ma con solo due uscite sia VGA che DVI.
Il nome di questa scheda e' TYPHOON / APPIAN e contiene nella confezione anche i cavi per monitor  DVI.

Big ideas need room.
The Appian Rushmore is a workstation-performance graphics card designed for bankers, traders, video editors and anyone else who needs an extended-desktop solution.

The complete extended desktop solution.
Appian provides it all: high-performance graphics cards, time-saving HydraVision™ software and worldwide support. Only Appian offers AppianXtras™ —a suite of multi-display specialty tools which allow you to see more and do more.

Don’t sacrifice slot space.
The Appian Rushmore allows you to power up to four displays from a single slot, leaving you room for other professional hardware. Two ATI Radeon VE multi-monitor graphics accelerators offer impressive 2D and 3D capabilities.

Full Windows® compatibility.
The ATI Radeon VE graphics accelerator is ideal for the latest Windows operating systems, including support for all new Windows 2000 display features and special GDI extension accelerations such as Alpha BLTs, Transparent BLTs and Gradient Fills.

Powerful desktop management.
Appian's HydraVision software lets you define the placement of windows and dialog boxes to manage information across your extended desktop. Hot key short cuts and other time-saving features help you work more productively.

Recognized Leader.
Because Appian is the leading provider of extended desktop solutions, major PC manufacturers like Compaq, Dell, Hewlett-Packard and IBM offer Appian solutions to their customers.



Opzioni per schedeMultiVGA

VGA Extender per collegare un monitor VGA fino ad oltre 150 metri dal PC utilizzando il cavo rete CAT-5; Cavi VGA fino a 30 metri; VGA Matrix Switches per smistare segnali VGA con/senza Tastiera, Mouse ed Audio.



Solution Name Appian Rushmore Matrox G200 MMS
Graphics Chip 2x ATI RV100* 4x Matrox G200
Maximum analog resolution 2048 x 1536 1920 x 1200
Maximum digital resolution 1280 x 1024 1280 x 1024
RAMDAC 300 Mhz
10 bit		 250 Mhz
8 bit
Total Memory 64 MB DDR 32 MB SDRAM
Memory per channel 16 MB DDR 8 MB SDRAM
Bus type PCI PCI
Dual Output Version Yes Yes
Quad Output Version Yes Yes
Integrated Quad DVI or analog output Yes Yes
DVI and Analog cables included in retail package Yes No
Unified Driver Yes Yes
Card length 1/2 Length PCI 3/4 Length PCI
Microsoft® Windows® support NT4®, 2000, and XP Windows 98, NT4®, 2000
Portrait display support Appian Rotate No
Linux support (open source driver) Yes Yes
Multi-Board Support Yes Yes
Maximum Monitor Support 16** 16**
Multi-monitor desktop management software Yes Yes
Cost US$ (MSRP) € 720 € 810
Digital Cables Included, no charge $118 for 4-port
($59 for 4-port)
Total Cost (4-port): €720 €970


*Dual-Output Chip
** Under Windows NT4.0, other maximums regulated by the operating system
