KVM DRAWER IN 19" RACK MOUNT

Monitor Keyboard Drawer provides space-saving, convenient control with security lock on front panel.

Also known as: rack mount keyboard drawer, keyboard monitor drawer,
KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.

PS2 KVM Console Drawer, PS/2 rackmount keyboard monitor mouse drawer, PC KVM Shelf

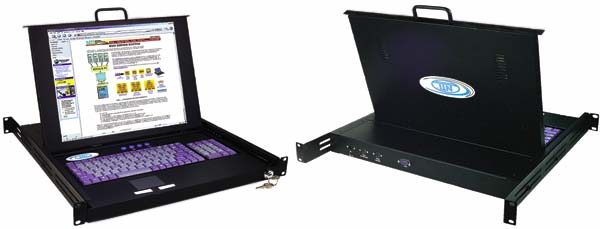

RACKMUX-1024 19" Rack Mount KVM Drawer (Front & Back)

Features & Applications

Put control where you need it - fit a complete KVM workstation in 1 HE/U of rack space. The RACKMUX® KVM Console Drawer is a compact data entry device. It combines a rack mount LCD monitor, keyboard and touchpad mouse in a space-saving 1 HE/U industrial strength drawer.

This keyboard monitor drawer takes 85% less space and requires 80% less ventilation than a standard keyboard, monitor and mouse. Connect to our KVM Switches for convenient control of all attached computers
  • Available with 15" or 17" Active Matrix LCD flat panel monitor.
  • Equipped with On Screen Display (OSD).
  • Compact, heavy-duty tactile keyboard.
  • Front panel conceals the unit when not in use.
  • Designed to fit in a standard 19" rack/cabinets.
  • Drawer is adjustable to various rack depths.
    • 15" drawer ranges from 0.4m to 0.7m.
    • 17" drawer ranges from 0.5m to 0.6m.
  • CE & UL approved.
  • Use NTI's USB-PS/2 adapter to connect the KVM Drawer to USB computers or USB KVM Switch.

Specifications

Keyboard

  • 6 pin MiniDIN (PS/2) connector.
  • "Gold Crosspoint" keyboard contacts ensure high reliability.
  • 105-key Keyboard.

Touchpad Mouse

  • 6 pin MiniDIN (PS/2) connectors.

Monitor

  • 15" or 17" Active Matrix LCD Flat Panel Monitor.
  • 1024x768 video resolution video for 15" monitor.
  • 1280x1024 video resolution for 17" monitor.
  • Sync Frequency: Horz 30 KHz-70 KHz, Vert 50-85 Hz.
  • Response Frequency: 40 KHz-20 KHz.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
  • 250 nits brightness and 350:1 contrast ratio typical.

Hosts

  • Compatible with PS/2 and Unix computers.
  • Use with NTI Multi-Platform KVM Switches to control PC, SUN and MAC computers.

Cables

  • 1.7m 15 HD VGA cable included.
  • 1.5m 6-pin miniDIN keyboard/mouse cable included.
  • 1.4m foot DC power supply cable included.
  • 1.2m PS/2 keyboard/mouse cables included.

Power

  • 110 or 220 VAC at 50 or 60 Hz via AC Adapter.
Available KVM Drawers
NTI Part # Screen Size Size (mm) WxDxH
RACKMUX-1024 15" 483x426x44
RACKMUX-PS2-17 17" 483x513x44
RACKMUX-RL-24-32 N/A 604x44

Extension Rail Option


RACKMUX-RL-24-32
  • Allows adjustments to various rack depths from 0.6 to 0.8m.
  • Compatible with RACKMUX-1024 and RACKMUX-PS2-17.
