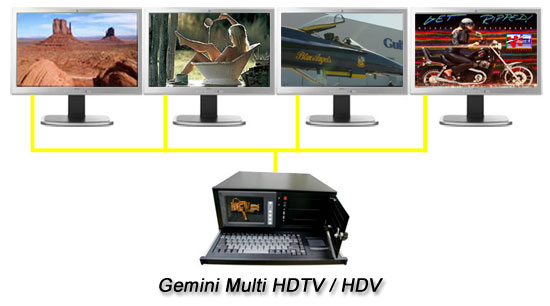

DIGIVISION ha realizzato il sistema Gemini Multi HDTV / HDV che permette la riproduzione da 1 fino a 4 canali video HDTV (1920 x 1080 50i/60i ) o D1 ( 720 x 576 ) con overlay di grafica.
Gemini Multi HDTV / HDV e' l'unico sistema al mondo che permette la multivisione sincronizzata con la precisione del fotogramma di ben 4 video in formato HDTV / HDV.
Il collegamento ai videoproiettori puo' avvenire sia in DVI che in YUV HDTV.

Gemini e' stata testata con successo con i sistemi di videoproiezione dell'ultima geneazione da 25.000 ANSI Lumen progettati per le nuove sale cinematografiche digitali e in grado di proiettare immagini HDTV su schermi di 14 metri di base con un'altissima qualita' di immagine.

GEMINI DECODER CARDS - TECHNICAL SPECIFICATIONS

DIGITAL VIDEO DECODING:
MPEG-1, MPEG-2, MPEG-4, unencrypted DVD (.vob) files
Decodes main profile at main level and main profile at high level MPEG-2 streams (ISO/IEC 13818-1)
Decodes transport, program streams and elementary streams
Simultaneous HD and down converted NTSC or PAL output
Decodes all 18 ATSC formats up to 1920x1080p
Data rate up to 45 Mbps
16:9, 4:3, 5:4 aspect ratios
4:2:2 and 4:2:0 decoding

VIDEO FORMAT CONVERSION:
Advanced up-scaling provides HD (1920x1080) resolution from standard definition inputs
4-tap horizontal and vertical filters
HD (ITU 709) to SD (ITU 601) bi-directional color format conversion
Adaptive de-interlacing
Flicker filtering

VIDEO OUTPUT FORMAT:
• SMPTE274M at 480p at 59 , 94, 60 frames/second
• NTSC, PAL
• 1920 x 1080i at 59,94,60 fields/second • 1920x1080p at 50,59,60 fields/second
• 1280 x 720p at 59, 94, 60 fields/second • 720 x 576p at 50,59,60 fields/second
• 720 x 576i at 50 fields/second • Variable aspect ratios

VIDEO OUTPUT:
Gemini Decoder Card Family includes 1 and 2 channel cards:
• 2 composite video outputs per channel
• RGBHV output
• S-video output
• DVI-D (1 channel card)
• DVI-D with HDCP encryption optional
• Connectors: DVI-I and 15-pin HD-sub

ADVANCED VIDEO PROCESSING:
32-bit OSD; 256-level transparency
32-bit high-resolution (up to 1920x1080)

AUDIO PROCESSING:
High-quality audio and video synchronization
5.1 digital audio (external AC-3 decoder required)
Two channel analog audio output on board
Stereo PCM
MPEG-1 Layers 1, 2, 3
16-bit linear PCM data
12-bit video DACs for accurate, low-noise performance
Audio bit rate for MPEG-1 Layer I of 32-448-448kbps
Audio bit rate for MPEG-1 Layer II of 32-384kbps
Audio bit rate for MPEG-1 Layer III (MP3) of 32-320 kbps
Sample rates of 32, 44.1, and 48kbps for MPEG-1 layer I and II
Sample rates of 16, 22.05, 24, 32, 44.1, and 48kbps

AUDIO OUTPUT:
2 independent SPDIF Digital Audio outputs (IEC 60958) per channel
2 stereo analog L/R per channel

PHYSICAL:
Half-size to full-size PCI card
PCI v2.1 interface 33 or 66 MHz bus clock.
Universal (5 or 3.3v 32-bit or 64-bit slot) PCI connector

SOFTWARE:
OS:Windows, Linux
SDK: Complete C programming library with sample source code and function calls
Backwards compatible API to ease integration with existing applications developed for Visual Circuits cards.

SYSTEM REQUIREMENTS:
Processor: Intel 600 MHz or equivalent
(1 GHz or higher recommended)
System memory: 256MB minimum
HDD: Ultra ATA/66 or better
