Conference rooms and boardrooms everywhere are going HD, and Sony's EVI-HD1 takes the headache out of this transition with the flip of a switch - literally. Sony is adding a high-definition model to its EVI camera series. Since it is also compatible with standard definition (SD), this unique PTZ camera allows you to take the first step in HD migration.
The EVI-HD1 camera combines a high-quality HD color video camera with the flexibility of remote pan/tilt/zoom operation. With 14 formats to choose from (including eight HD types and six SD video formats), this new dynamic camera allows end-users to decide when they are ready to migrate from SD to HD. The EVI-HD1 is compatible today with existing videoconferencing and broadcast systems and will be compatible tomorrow with HD based ones.
It also inherits many outstanding features from the EVI-D100 PTZ camera and couples these with superb HD picture quality. Smooth, high-speed pan/tilt operation, 16x9 aspect ratio images and a built-in 10x optical zoom/wide angle lens, make the EVI-HD1 ideal for small to medium size conference rooms.
 |
| Feature |
Benefit |
| Video Format Compatible with Multiple Formats from NTSC/PAL to Full HD |
The EVI-HD1 camera allows for SD to HD migration. The EVI-HD1 enables you to shoot an image using the 1080i full high definition video format and output in one of 14 formats, including eight HD types and six SD video formats (e.g. 720p, 1080p, 1080i and HD-Analog and HD-Digital). |
| Quiet, High-Speed Pan/Tilt Action |
By adopting the direct drive motor mechanism similar to the drive motor found in the EVI-D100 camera, the EVI-HD1 camera is extremely quiet and moves smoothly and quickly to the designated positions. |
| High-Quality Image Transmission via the Digital Interface (HD-SDI) |
This new camera outputs an HD image that conforms to the SMPTE 292M serial digital interface standard which allows for long distance transmission of high-quality images. |
| Built-In Conversion Lens for Wide Angle View (70 degrees) |
The EVI-HD1 incorporates a newly developed wide-angle lens for wide field of view image capture, a plus for small to medium sized conference rooms. |
| RS-232C Serial Control by VISCA™ Protocol |
All camera settings and pan/tilt/zoom functions for the EVI-HD1 can be controlled remotely via PC. |
Specifications
- Image Device: 1/3 type CMOS
- Effective Pixel Elements: Approximately 2m effective pixels
- Signal System: 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 720/59.94p,
720/50p, 720/29.97p, 720/25p,NTSC, PAL
- Lens: 10x optical, 40x with digital zoom f = 3.4 to 33.9 mm, F1.8 to F2.1
- Minimum Object Distance: 150 mm (Wide)
- Horizontal Viewing Angle: 8 degrees (Tele) to 70 degrees (Wide)
- Focus System: Auto/Manual
- Horizontal Resolution: 750 TV Lines (1080i mode, Wide)
- Lens Distortion: Less than 1%
- Minimum Illumination: 15 lux (F1.8)
- Exposure Control: Auto/Manual/Priority AE/Exposure Compensation/ Bright
- Shutter Speed: 1/2 to 1/10,000 sec.
- Gain: Auto/Manual (-3 to +18 dB)
- S/N Ratio: 50dB
- White Balance: Auto/Indoor/Outdoor/One Push Auto/Manual
- Pan/Tilt:
Pan: -100 to +100 deg. (Max. speed 300 deg./sec.)
Tilt: -25 to +25 deg. (Max. speed 125 deg./sec.)
- Position Preset: 6 position
- Video Output: HD-SDI, HD analog component (Y/Pb/Pr), VBS, Y/C
- Camera Control Interface: RS-232C (8-pin mini DIN, VISCA)
- Power Requirement: 12 V DC (10.8 to 13.0 V DC)
- Power Consumption: 25W
- Operation Temperature: 0 to +40 degrees C (32 to 104 degrees F)
- Storage Temperature: -20 degrees to +60 degrees C (-4 to 140 degrees F)
- Dimensions: Approx. 259 x 150 x 169 mm (10-1/4 x 6 x 6-3/4 inches)
- Mass: Approximately 2 kg (4 lbs., 7 oz)
VADDIO - SONY RM-BR300
Unità di controllo remota per telecamere Pan - Tilt - Zoom
The Sony RM-BR300 remote control unit can control the following Sony PTZ cameras, either indivually or daisy-chained!
- Sony BRC-300 3CCD PTZ
- Sony BRC-H700 PTZ Camera
- Sony PCS-HG90 PTZ Camera
- Sony EVI-D70 PTZ Camera
- Sony EVI-D100 PTZ Camera
- Sony SNC-RZ30 PTZ Network Camera
This stylish controller has a Sony ergonomic, easy-to-use design and features a joystick. The control interfaces are RS-232C and RS-422 based on VISCA protocol. The RM-BR300 controls all major camera functions, including access to the menu and preset functions.

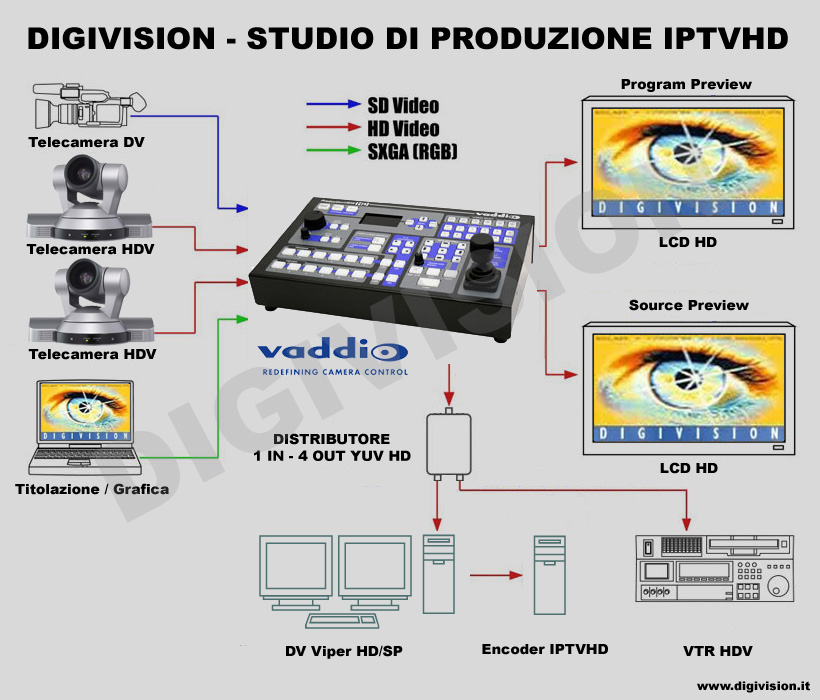

Qui sotto un esempio preso tra i sistemi e le soluzioni innovative per riprese editing e diffusione di video in HDTV sviluppate e distribuite in esclusiva da Digivision.
|
