USB IP Extender

Connects Five USB Devices to Ethernet Networks

Also known as: Remote Access to USB Devices, USB on IP, USB IP Extender, USB Management over IP.
USB IP Extender

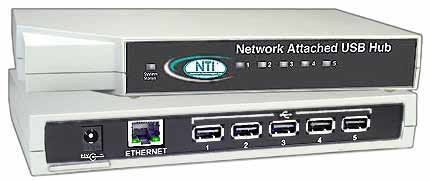

 USB-IP (Front & Back)


Features & Applications

The XTENDEX™ USB IP Extender allows five USB peripheral devices to be connected anywhere on a wired or wireless LAN, while eliminating the need for locally-attached host PCs. Software drivers are loaded onto a host PC or server, enabling remote devices to communicate with the host, without changing existing application software. USB peripheral devices can be centrally managed and monitored from a remote server or PC via an IP address.

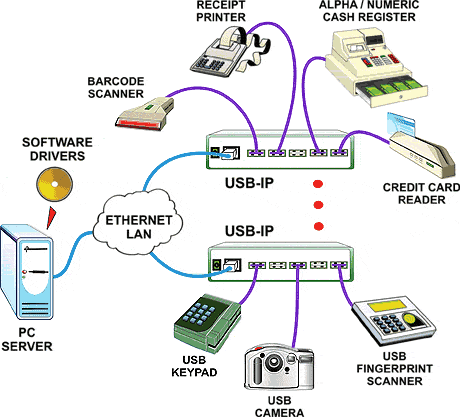

USB-IP is ideal for retailers--relocating the host PC to a back office or other remote location allows for smaller point-of-sale stations, centralized management, reduced IT support and instant system redundancy. Kiosk, ATM or pay-at-the-pump manufacturers can eliminate the PC inside the enclosure, reducing concerns of extreme changes in temperature or humidity. The USB-IP unit is also useful for restaurant kitchens, access control systems, industrial automation or any environment that is volatile, not secure or where having an onsite PC is not practical.
  • Extends USB cabling distance beyond five meters.
  • Creates systems redundancy and increases security since host PC can be located in a remote location.
  • Access and monitor devices over a TCP/IP connection.
  • Simplifies operations and reduces IT support.
  • Supports true plug-and-play functionality.

  • Remote configuration utility.
  • Field-upgradeable software and firmware.
  • One static (fixed) IP address per unit.
  • LEDs for system and device status.
  • USB 1.0, 1.1, 2.0 compatible.
  • Up to eight USB-IP units supported per server.
  • Two Open Host Controller Interface (OHCI) controllers

Specifications

Local USB Devices

  • Five female USB Type A connectors.
  • Compatible with bulk or interrupt type USB devices.
    • Bar-code scanners, printers, fingerprint scanners, mice, pole displays, card readers and more.
  • USB 1.0, 1.1, 2.0 compatible (USB 2.0 devices operate at 12Mbps).
  • Data rates up to 12Mbps per USB port.
  • 500mA downstream power per device.

Remote Compatibility

  • Compatible with PCs (Windows 2000/NT/XP).

Local Area Network (LAN) Connection

  • RJ45 connection.
  • Supports 10/100 Base-T using CAT5 UTP cable.

Environmental

  • Operating temperature: 32°F to 140°F (0°C to 60°C).
  • Relative Humidity: 0 to 95% non-condensing RH.

Regulatory Approvals

  • FCC Part 15, Class B
  • CE
  • EN55022
  • EN55024
  • EN60950
  • UL 1950
  • CSA 2.2 No. 950
  • IEC-950

Power

  • 120 or 230 VAC at 50 or 60 Hz via AC adapter.

Dimensions

  • WxDxH (In.): 7.2x4.4x1
  • Weight: 2.8 lbs.
