Rackmount Console Terminal Drawer

1 HE/U Rackmount Console Drawer provides RS232 Terminal or Telnet Terminal control of headless servers.

1RU Rackmount Console Drawer provides RS232 Terminal or Telnet Terminal control of headless servers.

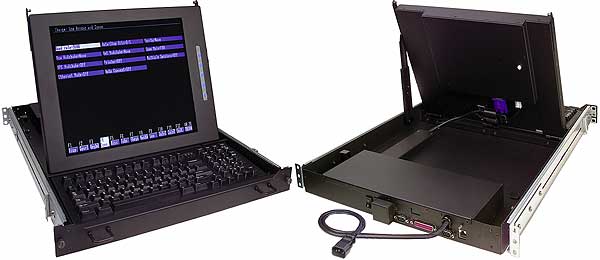

RACKMUX-TERM (Front and Back)

Features & Applications

The RACKMUX® Terminal Drawer places a VTxx/ANSI Terminal right in the rack for control of SUN or PC-based headless servers. This flexible terminal is easy to install and configure for either RS232 or Telnet communication modes:
  • Entire unit is only 1 HE/U (44mm) high.
  • Monitor has five locking positions while in use, and a lock-down mechanism for when not in use.
  • LCD power-up when raised; manual override.
  • NEMA sealed front 2mm glass protects the LCD panel.
  • Supports RSC capabilities.
  • Serial and parallel slave-printer ports.
  • Includes rackmount kit suitable for SUN and most EIA 19" racks. Fits 0.6m to 0.9m rack depths via adjustable mounting brackets.

Specifications

Monitor

  • Active Matrix TFT color 15" LCD flat panel monitor.
  • 800x600 video resolution.
  • Video auto-adjust for optimum image.
  • OSD controls for brightness and contrast.
  • 250 nits brightness and 300:1 contrast ratio typical.

Keyboard

  • 101-key US layout keyboard.

Communication

  • Serial port: One DB9M RS232 port.
  • Network port: One RJ45 10BaseT Ethernet port.
  • Local printer ports: One DB25F Parallel and one DB9M RS232 port.
  • Serial baud rates: 50 to 115,200bps.
  • Data format: 7 or 8 data bits with or without parity, 1 or 2 stop bits.
  • Serial handshake: XON/XOFF, XPC, and hardware DTR.
  • Communication options: Single RS232 server connection, or up to 12 Ethernet telnet session to predefined IP addresses.

Terminal Emulation

  • Character matrix: 7x12 dot matrix in 10x16 cell with 3 dot descenders.
  • Screen size: 80 characters wide by 25 lines.
  • Page length: 1, 2 or 4 screens (multiple screen page length reduces maximum number of possible telnet sessions).
  • Cursor: Blink or steady, block or underline.
  • Modes: Full duplex, half duplex, block, half block.
  • 16 foreground colors.

Hosts

  • Compatible with any SUN or PC-based headless server.

Power

  • 110 or 220 VAC at 50 or 50Hz.

Dimensions

  • WxDxH (mm): 483x611x44.

Cables

  • Includes 3 meter RS232 cable terminating in DB25M and DB25F-DB9F adapter.
