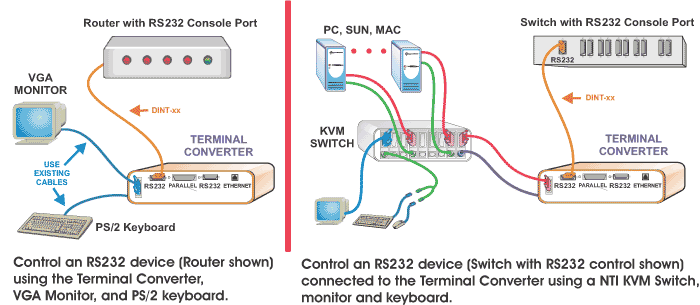

Compatibility

• Can be operated by any NTI Universal KVM Switch or PS/2 KVM Switch.
• Compatible with SUN or PC-based headless servers.
• Compatible with NTI switches having RS232 or Ethernet support.

Monitor

• Supports standard VGA monitor.
• Female 15-pin HD connector.
• Crisp and clear 800x600 resolution.
• Frequency:
  • Horizontal: 31.5 or 48.1 kHz.
  • Vertical: 70 or 72 Hz.

Keyboard

• Female 6-pin miniDIN keyboard connector.
• Supports standard PC/AT keyboard 101/102 keys.

Network Protocols

• ARP, ICMP
• TCP/IP, Telnet
• UDP

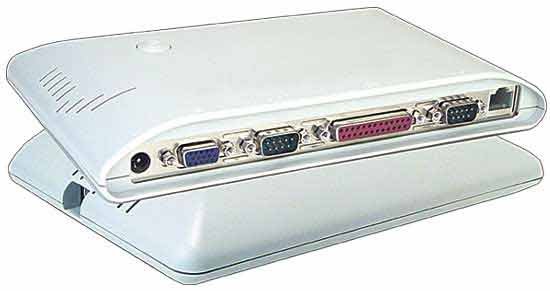

Communication Ports

• Serial port: One male DB9 RS232 port.
• Network port: One RJ45 10BaseT Ethernet port.
• Local printer ports: One female DB25 Parallel and one male DB9 RS232 port.
• Serial baud rates: 50 to 115,200bps.
• Data format: 7 or 8 data bits with or without parity, 1 or 2 stop bits.
• Serial handshake: XON/XOFF, XPC, and hardware DTR.
• Communication options:
  • Single RS232 server connection.
  • Up to 12 Telnet sessions to predefined IP addresses.

Terminal Emulation

• Display:
  • Columns: 80, 132 or Econ-80
  • Lines: 24, 25, 42, 43
  • Color: 16 foreground and 16 background colors.
  • Page length: 1, 2 or 4 screens (multiple screen page length reduces maximum number of possible telnet sessions).
  • Cursor: Blink or steady, block or underline.
  • Screen saver.
• Multiple RS232 Emulations
  • ADDS A2
  • PC TERM
  • PCG Alpha
  • Console ANSI
  • TVI910+
  • TVI925
  • VT52
  • VT100
  • VT220
  • VT320
  • WY-50+
  • WY-60
  • WY-120
  • WY-325

Environmental

• Operating temperature: 41°F - 104°F (5°C - 40°C).
• Storage temperature: -40°F - 140°F (-40°C - 60°C).
• Operating and Storage Relative Humidity: 20 - 80% non-condensing RH.

Power

• 110 or 220 VAC at 50 or 60 Hz via AC adapter.

Dimensions

• WxDxH (Inches): 8.4x5.3x1.6
• Weight: 1.1 lbs.
