SUN PC Matrix KVM Switch

UP TO 8 USERS CAN SHARE 512 PC, SUN & MAC COMPUTERS

Also known as: KVM matrix switch, universal matrix switch, universal matrix kvm switches,
multiple platform cpu switch, multi-user multi-platform switch, kvm matrices, High Density KVM Switch.

4 USERS and 16 COMPUTERS in 1 HE/U

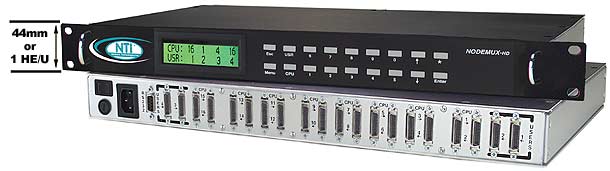

NODEMUX™ ST-4X16-UHD Matrix High Density KVM Switch (Front & Back)

Features & Applications
The NODEMUX™ SUN PC Multi-Platform Matrix KVM switch enables up to eight users to individually command or simultaneously share up to 32 computers. (Expansion up to 512 computers is supported by cascading multiple switches with the XPANDMUX™ ST-MX-xO Switch Expansion Units). This low-cost switch accesses PC, MAC, and SUN computers (and USB computers with NTI adapters). PC, SUN or MAC keyboards and mice can be connected by using adapter cables.
Equipped with On Screen Display (OSD), Liquid Crystal Display (LCD) and RS232 control. Rackmount is standard on all NODEMUX ST-nXm-U models. The 2x8 and 4x8 models are also available in a desktop case (denoted by "-DT" in part number). Users can power-down the switch without rebooting attached computers. Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.	The advanced OSD user interface with password security makes the NODEMUX Matrix switch simple and reliable to use in Enterprise data centers. Use as a single or multi-platform switch. Users can work individually or share one computer. The High Density Switches save you rack space (look for "-HD" at the end of the part number.) Cabling runs are simplified with NTI's high density KVM switch cables.

Hosts

Supports PS/2 platform computers, including laptops, HP 9000, Silicon Graphics and IBM RS6000.
Supports SUN, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ 280R and SUN Ray (using NTI's USB-SUN adapter).
Supports MACs, including G4,G5 and Xserve (using NTI's USB-ADB adapter).

Mouse

Smooth mouse movement.
Mice are hot-pluggable.
Compatible with all standard 2-button PS/2 mice as well as the following:
- Microsoft IntelliMouse®.
- Logitech (and other) 3-button mice.
- Alps Glidepoint Touchpad (extended functions-i.e. tapping, etc.-are not supported).
- Cirque Glidepoint Touchpad.
- IBM Scroll Point mouse (extended stick functions are not supported).
- Kensington Orbit Trackball.
- Logitech 2-button Wheel Mouse.
- Microsoft Ballpoint mouse.
SUN 3-button mice are supported.
- Wheel on IntelliMouse emulates SUN's third mouse button.
MAC 1-button mice are supported.
<COMMAND> + CLICK on the MAC mouse emulates SUN/PC right click.

Monitor

Supports crisp & clear 1900x1200 video resolution with no degradation.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Bandwidth is 150 Mhz.

Keyboard

User devices can be PS/2, SUN or MAC.
Keyboard is hot-pluggable.
MAC and SUN startup keys are supported on all platforms of input devices.
Keystrokes are translated across platforms.

Connectors

ST-nXm-U switches
- Female 8-pin miniDIN keyboard and mouse connectors for ST-nXm-U switches.
- Female 15-pin HD connectors for ST-nXm-U switches
ST-nXm-U-HD switches
- Female 26-pin SCSI II connectors

Power

110 or 220 VAC at 50 or 60 Hz.
NODEMUX ST-2x8-U and ST-4x8-U: 110 or 220 VAC at 50 or 60 Hz via AC adapter.

Standard in NODEMUX™ ST-nXm-U ONLY:

Optional-sold separately

XPANDMUX™ Switch Expansion Unit-Combine switches for a total of 512 CPU port>

AVAILABLE SIZES FOR SUN PC MATRIX KVM SWITCH
NTI Part #	# of Users	# of CPUs	Size (mm) WxDxH	Rack Units	Rack Size (mm) WxDxH	Download a PDF Manual
ST-2X8U-DT	2	8	254x190x83	NA	NA
ST-2X32U	4	32	NA	3 HE/U	483x304x133
ST-4X8U-DT	4	8	254x190x83	NA	NA
ST-4X32U	4	32	NA	3 HE/U	483x304x133
ST-8X8U	8	8	NA	3 HE/U	483x304x133
ST-8X16U	8	16	NA	3 HE/U	483x304x133
ST-8X24U	8	24	NA	3 HE/U	483x304x133
ST-8X32U	8	32	NA	3 HE/U	483x304x133

AVAILABLE SIZES FOR HIGH DENSITY SUN PC MATRIX KVM SWITCH
NTI Part #	# of Users	# of CPUs	Size (mm) WxDxH	Rack Units	Rack Size (mm) WxDxH	High Density Cables
ST-2X8-UHD	2	8	NA	1 HE/U	483x317x44	VMTINT-xx SMTINT-xx
ST-2X16-UHD	2	16	NA	1 HE/U	483x317x44
ST-4X8-UHD	4	8	NA	1 HE/U	483x317x44
ST-4X16-UHD	4	16	NA	1 HE/U	483x317x44

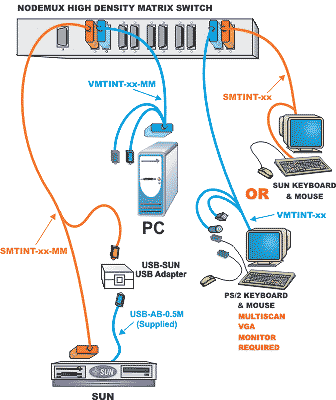

INTERFACE CABLES & VIDEO ADAPTERS
Cable/Length	Description	Type
VMTINT-xx-MM	Connects an NTI High Density Switch to a PS/2 CPU	PS/2
SMTINT-xx-MM	Connects an NTI High Density Switch to a SUN CPU	SUN
SMTINT-xx	Connects SUN Devices to a High Density Switch	SUN
VMTINT-xx	Connects PS/2 Devices to a High Density Switch	PS/2
VKTINT-xx-MM	Connects PS/2 Devices to an NTI SUN PC Switch	PS/2
SKTINT-xx-MM	Connects SUN Devices to an NTI SUN PC Switch	SUN
MKTINT-xx-MM	Connects MAC Devices to an NTI SUN PC Switch	MAC
VEXT-xx-MM	Connects VGA & SVGA video port to an NTI SUN PC KVM switch (standard or High Density); Male-Male 15 pin HD, multicoax. Resolution through 1900 x 1200	PS/2
13W3M-15HDF	Adapts a 13W3 Sun video port to VGA video port on an NTI SUN PC KVM switch	SUN
15DM-15HDF	Adapts a MAC video port to VGA video port on an NTI SUN PC KVM switch	MAC
