DVI KVM Switch

Control up to two single link DVI-enabled PCs from one PS/2 keyboard, PS/2 mouse and DVI monitor.

Also known as: DVI KVM switch, 2 port PC Switch for DVI Flat Panel Display Monitors, keyboard DVI monitor mouse switch.

DVI KVM Switch

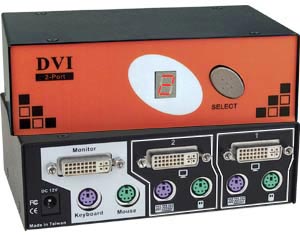

KEEMUX-PD-2 (Front & Back)

Features & Applications

The KEEMUX® DVI KVM switch allows you to control two single link DVI-enabled PCs with one DVI monitor, PS/2 keyboard and PS/2 mouse.
  • Dual monitor DVI KVM switch is available.
  • All attached PCs can be booted simultaneously.
  • 1900x1200 video resolution.
  • Supports DVI interface for crisp and clear video quality on Flat Panel Display.
  • Front-panel push button and hotkeys for channel selection.
  • LED display on switch shows which port is active.
  • Auto Scan all PCs to catch system failures early.
  • Rugged metal enclosure.

Specifications

Control Methods

Hosts

  • KEEMUX-PD-2: compatible with PS/2-style computers.
  • KEEMUX-P2D-2: compatible with PS/2-style computers with dual video outputs.
  • Supports DOS, Win3.X, Win95/98/ME/NT/2000/XP.
  • Female DVI-I single link connectors.
  • Female 6-pin miniDIN connectors.

DVI Flat Panel Display Monitor

  • KEEMUX-PD-2: female DVI-I single link connectors.
  • KEEMUX-P2D-2: two female DVI-I single link connectors.
  • Resolution through 1900x1200.

Keyboard

  • Female 6-pin miniDIN connector.

Mouse

  • Female 6-pin miniDIN connector.
  • Compatible with all standard 2-button PS/2 mice.

Power

  • Powered from attached computers.

Cables

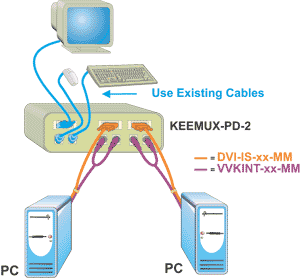

  • Interface cables between your PCs and the switch are required for proper operation. Use DVI-IS-xx-MM and VVKINT-xx-MM to connect computers to the switch.

Front Panel Interface

  • LEDs indicate currently selected port.
  • Scan Mode feature causes the switch to automatically and sequentially display the video from each powered-on computer.

Keyboard

  • Hotkey commands to switch ports.
  • Scan Mode available from the keyboard.

DVI KVM Switches

NTI Part # Description
KEEMUX-PD-2 2-port DVI KVM switch
KEEMUX-P2D-2 2-port dual monitor DVI KVM switch
Compatible DVI Video, PS/2 Keyboard and Mouse Cables
DVI-I single link
male-male cable		 PS/2 keyboard and mouse
male-male cable
NTI Part #LengthNTI Part #Length
DVI-IS-3-MM3 VVKINT-3-MM3
DVI-IS-6-MM6 VVKINT-6-MM6
DVI-IS-10-MM10 VVKINT-10-MM10

DVI-I Male to Male

Dual PS/2 Male to Male
