Rackmount TFT/LCD Monitor
TFT Rackmount LCD Monitor, Flat Panel Monitor |
 |
RACKMOUNT TFT/LCD MONITOR
7RU 17" monitor provides a wide viewing angle with high contrast.
Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor,
tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor.
|

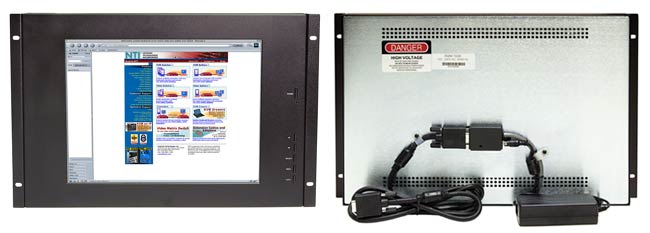

RACKMUX-VV17 (Front and Back) |
|
Features & Applications |
The RACKMUX® Rackmount TFT/LCD Monitor provides a wide viewing angle with high brightness and contrast. It supports true plug-and-play functionality and does not require any additional video drivers or interface adapters.
- Equipped with On Screen Display (OSD).
- Lexan™ shield protects the TFT panel.
|
- Space-saving. Extra rackmounting space available behind the monitor.
- 7RU (12.25") high.
- Designed to fit in a standard 19" rack/cabinet.
- Always visible. Gives an impressive look to your server rack.
|
Specifications |
- 17" active matrix TFT LCD flat panel monitor.
- 1280x1024 maximum video resolution.
- Sync Frequency:
- Horizontal: 31 to 82 KHz.
- Vertical: 56 to 75 Hz.
- Sync: H/V Separate (TTL).
- 250 nits brightness and 400:1 contrast ratio typical.
- OSD controls for brightness, contrast, horizontal and vertical position, and auto adjust.
- Supports the DDC1 and DDC2B protocol.
Hosts
- Compatible with PC, SUN or MAC computers.
| Power
- 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Environmental
- Operating temperature: 32°F to 122°F (0°C to 50°C).
- Storage temperature: -4°F to 140°F (-20°C to 60°C).
- Operating Relative Humidity: 10% to 85% RH.
Cables
- 6 ft. 15-pin HD VGA cable.
- 6 ft. IEC line cord.
Dimensions
- WxDxH (Inches): 19x2.5x12.25
- Weight: 25 lbs.
|
