Rackmount Eight Screen LCD Color Video Monitor

1RU rackmount panel consists of eight 1.8" high-resolution active matrix LCD screens.


Also known as: Rackmount eight 8 Screen LCD Color Video Monitor, lcd rack, LCD video monitoring system,
Lcd video reference monitors, 1U rack mount multiple LCD screens.

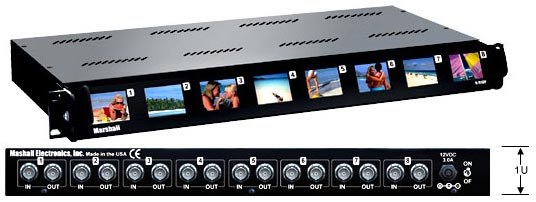

RACKMUX-8L-1U (Front and Back)


Features & Applications

The RACKMUX-8L(SDI)-1U is a rack mountable unit that offers eight 1.8" high-resolution active matrix LCD panels in 1RU.
  • High resolution: 280x220 pixels.
  • Automatic NTSC/PAL video signal detection.
  • Available in composite or SDI configurations.
  • Active loop-through capability for each screen.
  • Wide viewing angle.
  • 90 degree tilt adjustment while mounted in rack.
  • Ultra-compact design fits in 19-inch EIA standard rack 1U high.

Specifications

  • Video Input:
    • RACKMUX-8L-1U: one composite video input per screen.
    • RACKMUX-8LSDI-1U: one SDI input per screen.
  • Video Output: one loop-through video output per screen.
  • Display: 1.8" Active Matrix LCD.
  • Viewing area: 1.45" x 1.11"
  • Contrast ratio: 150:1
  • Display modes: NTSC/PAL autosensing.
  • Dot pitch: 0.132mm x 0.128mm
  • Resolution: 280x220
  • Brightness: 250 cd/m2.
  • Power: 110 or 220 VAC at 50 or 60 Hz.
  • Dimensions (WxDxH): 19x8.7x1.75

Rackmount 8 Screen LCD Monitors

NTI Part #Description
RACKMUX-8L-1URackmount 8 Screen LCD Monitor, Composite
RACKMUX-8LSDI-1URackmount 8 Screen LCD Monitor, SDI
