Rackmount Four Screen LCD Color Video Monitor

2RU rackmount panel consists of four 4" high-resolution active matrix LCD screens.


Also known as: Rackmount four 4 Screen LCD Color Video Monitor, lcd rack, LCD video monitoring system,
Lcd video reference monitors, 2U rack mount multiple LCD screens.

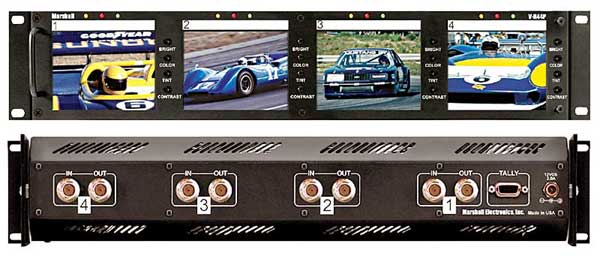

RACKMUX-4L-2U (Front and Back)		 LCD rack dimensions


100 degree tilt adjustment
100° Tilt

Features & Applications

The RACKMUX-4L-2U is a rack mountable unit that offers four 4" high-resolution active matrix LCD panels in 2RU.
  • High resolution: 480x234 pixels; 112,320 total.
  • Ultra-bright panels with 300 candle luminance each.
  • Automatic NTSC/PAL video signal detection.
  • One composite video input with active loop-through capability for each screen.
  • Three color, self-powered tally system provided for each screen.
  • Front panel controls for color, tint, contrast and brightness.
  • 100 degree tilt adjustment while mounted in rack.
  • Ultra-compact design fits in 19-inch EIA standard rack 2U high.

Specifications

  • Video Input: one composite video input per screen.
  • Video Output: one loop-through composite video output per screen.
  • Display: 4" Active Matrix LCD.
  • Viewing area: 3.23" x 2.43"
  • Dot pitch: 0.171mm x 0.264mm
  • Resolution: 480x234
  • Display modes: NTSC/PAL autosensing.
  • Brightness: 300 cd/m2.
  • Red/Green/Yellow Tally Lights.
  • Picture controls: color, tint, contrast and brightness.
  • Power: 110 or 220 VAC at 50 or 60 Hz.
  • Dimensions (WxDxH): 19x1.9x3.5
