LCD MONITOR ARM
Save desktop space and optimize LCD monitor viewing with ergonomic, articulating LCD arms and mounting brackets.
Also known as: LCD Arms, monitor arms, LCD brackets, monitor brackets, flat panel monitor arm, Flat Panel LCD Arms, Flat Screen Arms, LCD Monitor Arm,
Wall Mount, Desk Mount, LCD Custom Mounting Solutions.
| |

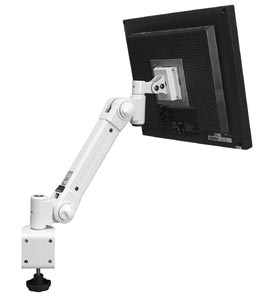

ARM-CC-LCD-L (without Extension) |

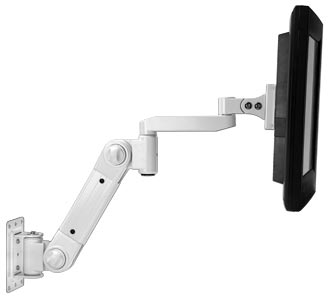

ARM-WL-LCD-LE (with Extension) |
ARM-WL-LCD-BR |
|
|
Features & Applications |
The LCD monitor arms and mounting brackets are designed to allow effortless height, tilt and rotation adjustment of the monitor by hand. Ruggedly constructed from lightweight aluminum alloy, the arms mount easily on a desktop or wall allowing the user to save desktop space while providing maximum viewing flexibility.
- Spring-assisted and friction-based design provides quiet and smooth knobless repositioning.
- Loading ranges from 7 - 15 lb. to 15 - 24 lb. monitors.
- 90° vertical angle adjustment of the arm allows adjustment for the most comfortable viewing height, minimizing user fatigue.
- 90° portrait/landscape pivot rotation of monitor.
- Arm rotates 360° on C-clamp, and over 180° on wall bracket.
- Optional Extension Arm allows 360° rotation of LCD.
- Monitor pivot head allows for 45° tilt up or 25° tilt down from vertical.
|
- Monitor pivot head can rotate 360° on arm when upright (without extension), and over 180° when arm is extended.
- Compliant to VESA® 75mm or VESA 100mm Standard mounting hole patterns.
- Locking screws on arms and brackets hold monitor stationary on horizontal and/or vertical axis.
Monitor arms are the ideal solution wherever computers are present, such as:
- Classrooms.
- Healthcare facilites.
- Libraries.
- Reception and information desks.
- Data and command centers.
|
- Trade shows and conventions.
- Conferences and seminars.
- Entertainment facilities.
- Courtrooms.
|
|
Specifications |
C-Clamp Mount LCD Arm
(ARM-CC-LCD-xx)
Includes:
- VESA 75mm LCD Pivot Head
- VESA 75mm to VESA 100mm Conversion Kit
- 430mm (17 in.) Adjustable Arm
- ARM-CC-LCD-L: Light load, 10 - 18 lbs.
- ARM-CC-LCD-H: Heavy load, 15 - 24 lbs.
- C-Clamp Mount
Optional:
- Die-cast 165mm (6.5 in.) Swing Extension Arm
- (add "E" to end of part number to specify this option)
- Extension Arm reduces Load capacity by 3 lbs.
|
Wall Mount LCD Arm
(ARM-WL-LCD-xx)
Includes:
- VESA 75mm LCD Pivot Head
- VESA 75mm to VESA 100mm Conversion Kit
- 430mm (17 in.) Adjustable Arm
- ARM-WL-LCD-L: Light load, 10 - 18 lbs.
- ARM-WL-LCD-H: Heavy load, 15 - 24 lbs.
- Wall Mount Bracket (with Anchor Screws)
Optional:
- Die-cast 165mm (6.5 in.) Swing Extension Arm
- (add "E" to end of part number to specify this option)
- Extension Arm reduces Load capacity by 4 lbs.
|

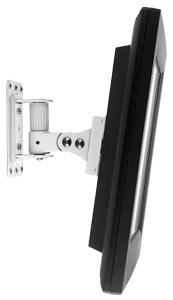

Wall Mount Compact LCD Bracket
(ARM-WALL-24)
Includes:
- VESA 75mm LCD Pivot Head
- VESA 75mm to VESA 100mm Conversion Kit
- Wall Mount Bracket (with Anchor Screws)
- Load capacity: up to 24 lbs.
|
