KVM Switch via CAT5

Control up to 64 servers with a zero HE/U KVM switch

Also known as: KVM Switch CAT5, low density KVM switch, KVM Server Switch, zero-u kvm switch,
zero u KVM switch zero rack space switch, switchless KVM Switch

CAT5 KVM Switch, Zero-U KVM Switch, switchless kvm switch

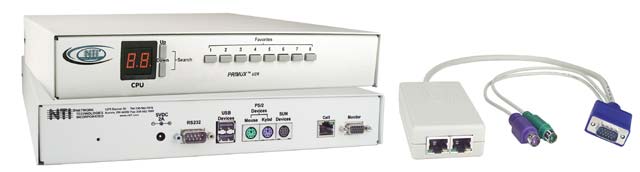

PRIMUX-UZR (Front & Back) and HA-PS2 Host Adapter

Features & Applications

The PRIMUX™ Zero HE/U KVM Switch System enables selection and control of up to 64 computers without consuming rack space. The switch frees up valuable space by eliminating large KVM switchboxes and bulky hard-to-manage coax cables. Servers can be controlled up to 305 meters away through keyboard commands via built-in On Screen Display (OSD) or the front panel interface of the User Station.
  • A single, inexpensive CAT5 UTP cable replaces bulky KVM cables. CAT5e or CAT6 cables are also supported.
  • Ideal for hazardous/unsecured environments. User station can be located up to 305 meters from servers.
  • Easy to install and use with plug-and-play functionality.

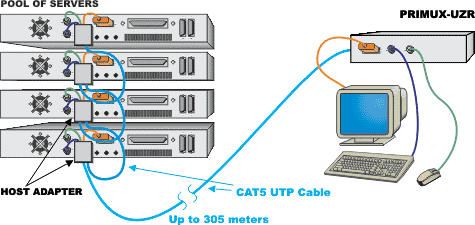

  • Provides a simple daisy-chained wiring configuration.
  • Hot-swap components with no disruption of server operation.
  • Crisp and clear 1024x768 video resolution at 305 meters, 1920x1440 at 91 meters.
  • Automatic video quality adjustment for CAT5 cable up to 305 meters.
  • Supports USB keyboard and mouse.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • OSD provides skew compensation and cable-type selection (CAT5, CAT5e, CAT6).
  • Color-coded LEDs on both the local and remote units indicate power status and verify communication between the units.

Specifications

User Station

Monitor

  • Female 15-pin HD connector.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Maximum 1024x768 video resolution at 305 meters; higher resolutions are supported at shorter distances.
  • Supports Separate and Composite TTL level sync and Sync on Green.

Devices

  • Two female USB Type A/two 6-pin miniDIN connectors.
  • Supports all standard PS/2 keyboards and most USB keyboards with Windows or SUN keyboard layout.
  • NTI recommends using a USB SUN keyboard if there are SUN hosts being controlled.
  • Keyboards and mice are hot-pluggable.
  • User keyboard and mouse must be of the same platform.
  • All standard 2-button PS/2 mice, as well as:
    • Microsoft IntelliMouse®.
    • Logitech (and other) 3-button mice.
    • Alps Glidepoint Touchpad.
    • Cirque Glidepoint Touchpad.
    • IBM Scroll Point mouse.
    • Kensington Orbit Trackball.
    • Logitech 2-button Wheel Mouse.
    • Microsoft Ballpoint mouse.
  • USB SUN 3-button mice are supported.
  • Most USB mice (up to 3 buttons), including USB Intellimouse®.

Host Adapters

Hosts

  • A maximum of 64 host computers can be daisy-chained together. One platform-specific (PS/2, SUN or USB) HA-x Host Adapter is required for each computer

HA-PS2

  • Compatible with any OS supporting PS/2, including RS6000, SGI and HP 9000.
  • Male 15-pin HD/two male 6-pin miniDIN connectors.

HA-SUN

  • Compatible with all legacy SUN computers, including Ultras.
  • Male 15-pin HD/male 8-pin miniDIN connectors.
  • Support for SUN start-up keys requires an Optional Power Supply for the HA-SUN Host Adapter(s). One power supply will provide power to up to 6 HA-SUN Host Adapters.

HA-USB

  • Compatible with the following:
    • Any USB-enabled SUN, including SUN Blade 100 and 1000, SUN Ray, and SUN Fire™ 280R.
    • PCs with USB-enabled OS (Win 98/2000) and USB ports.
    • PCs with USB-enabled BIOS (legacy USB support) and USB ports.
    • MAC G4, G5 and Xserve.
  • Male 15-pin HD/male USB Type A connectors.

Power

  • User Station: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Host Adapter: provided by the host computer.

Built-In Control Methods

On Screen Display (OSD)

  • Allows the user to define the cable type for optimal video quality.
  • Locate and select computers by name with the OSD.
  • Displays the platform, name, and power status of the daisy-chained computers.
  • Names can be up to 16 characters long.
  • Use keyboard or mouse to operate the switch from menus superimposed onto the monitor.
  • OS- and software-independent.

Front Panel Interface of the User Station

  • Locally change ports with front panel buttons.
  • Provides eight "favorites" buttons allowing the user to program frequently used computers for quick access.

Keyboard

  • Scan or Command Modes are available from the keyboard.
  • Scan Mode Automatically and sequentially displays the video from each powered-on computer. Duration of display can be 2-255 seconds.
  • Command Mode allows the user to give instructions to the switch through his/her keyboard. Keystrokes are not passed to the computer.
  • Use the keyboard to command the switch box to select ports or configure the Scan delay.
  • Type <Ctrl> + < ´ > (or <Compose> + < ´ >) to go into Command Mode.
  • Press <Esc> to leave Command Mode and return to Normal Mode or Scan Mode.

Security

  • Add or remove authorized users.
  • Set individual user names and passwords for each user.
  • Administrator can enable or disable all security features and select which computers each user can access.

Display Data Channel (DDC)

  • Supports the DDC2B protocol.
  • Allows the CPU to automatically select the optimal resolution for the monitor.
  • Acquires DDC information from an OSD selection.
  • Supports true plug-and-play functionality.
  • Supports Apple Cinema Display (VGA-to-ADC adapter required).
  • Supports DDC-enabled PCs, SUNs and MACs.
  • DDC information is available at every host adapter.

Optional Power Adapter for HA-SUN

  • Required for support of SUN start-up keys.
  • One power supply will provide power to up to 6 HA-SUN Host Adapters.
  • Power: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Add "-PA" to part number of SUN Host Adapter.

Cables

  • Use CAT5, CAT5e or CAT6 UTP cable to daisy chain Host Adapters and User Station.
  • Cables not included
PRIMUX-UZR, Control up to 64 servers in zero rack space

Available Sizes

Function NTI Part # Platform Size (mm)
WxDxH
User Station PRIMUX-UZR PS/2, SUN OR USB 279x279x44
Host Adapter HA-PS2 PS/2 53x94x25
Host Adapter HA-USB USB 53x94x25
Host Adapter HA-SUN SUN 53x94x25
Powered Host Adapter HA-SUN-PA SUN 53x94x25
Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance
(meters)		 Resolution
CAT5/
CAT5e		 305 1024x768 at 60Hz
213 1280x1024 at 60Hz
152 1600x1200 at 60Hz
91 1920x1440 at 60Hz
CAT6 244 1024x768 at 60Hz
213 1280x1024 at 60Hz
183 1600x1200 at 60Hz
152 1920x1440 at 60Hz
