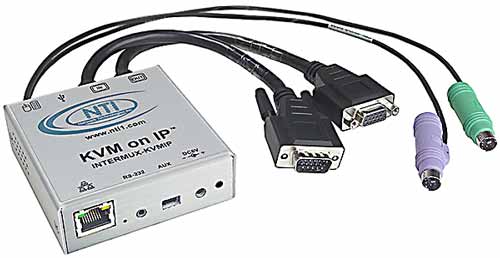

INTERMUX-KVMIP |

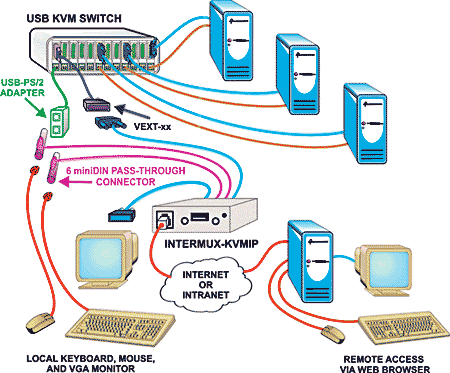

The INTERMUX® KVM on IP™ system allows you to control one or many computers locally at the server site or remotely via the Internet using a standard browser. You can securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet. Communication is secure via SSL encryption. Use in conjunction with a KVM switch for multiple-server access. The INTERMUX unit is compatible with all NTI switches, including UNIMUX™ USB KVM Switches (using NTI's USB-PS2 adapter). |
- Provides direct connection to servers at the BIOS level.
- Highly secure. Encrypted with SSL v2/v3.
- Unique security certificates can be generated and uploaded to the system after endorsement by a certification authority.
- Zero-U. Consumes no rack or desk space.
- No impact on computer performance. The INTERMUX unit is connected to the monitor, keyboard and mouse connectors of the host computer.
- Requires no additional software. There are no licensing fees for proprietary software based on the number of users.
|
- Optimize multiple-user access by providing several INTERMUX units at the server location.
- Remote Boot.
- USB 2.0 mass storage emulation allows the local computer to boot from a remote drive over the network.
- Ten remote users can access the server simultaneously.
- Plug and Play functionality allows simple physical reconfiguration of the server environment.
|
|
Video
- VGA 15-pin HD connector.
- Resolution up to 1280x1024.
- Video resolution adjustment is automatic; manual fine tuning available.
Keyboard/Mouse
- Standard PS/2 keyboard and mouse. Female 6-pin miniDIN connectors.
- Provides high-performance mouse tracking and synchronization.
- Allows local and remote keyboard and mouse control.
Local Internet Connection
- Ethernet:
- RJ 45 connection.
- Automatically senses connection speed and supports 10/100 Base-T using CAT5 UTP cable.
|
Remote Access
- Internet access using Microsoft Internet Explorer version 6.0 or higher on Windows 2000 or Windows XP.
Security
- V2/V3 SSL.
- SSL management of unique certificates.
Hardware
- 200 MHz processor.
- 32 MB memory.
- 8 MB Flash.
Power
- 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Dimensions
|
