Features:

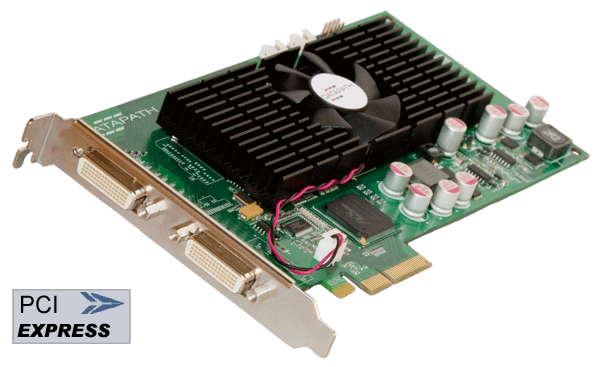

Four Lane PCI express graphics adapter (single slot)
Four display outputs with support for RGB or DVI
Dual 128 bit GPU’s with 2x 256MB frame buffer
Display resolutions up to 4x 1920x1200x32bit
Up to 10 cards for a maximum of 40 display channels * 1

* 1. Three or more Image4 cards require the Express9 or Vision800

Image4 operates under Windows® Vista/XP/7 and spreads the Windows desktop across the multi-screen display. Both portrait and landscape display configurations are supported. Ideal for video wall and digital signage applications.

The Image4 is supplied with two analog VGA splitter cables (RGB-S-Cable) and one Sync lock-Cable.

The Image4-DVI is supplied with two DVI splitter cables (DVI-S-Cable) and one Sync lock-Cable.

Software Included:

Special multi-screen display driver for use with Windows® XP, Windows® 7 and Windows® Vista 64bit. The function of the display driver is to present one large desktop to the Windows operating system. The multi-screen driver will support up to a maximum of 40 screens.
Wall Control - presents a representational window of the entire display wall showing position and size of video windows

Advanced Features

Optional configuration for dual port output for 2x performance/channel
Up to 10 cards per system for a maximum of 40 display channels
Low Power
All video outputs are vertically synchronised
Compatible with Datapath Wall Control software
SDK available for OEM customers

Video Walls

Image4 is also compatible with the Datapath Vision range of video capture cards for systems requiring SD, HD, RGB or DVI video overlays. Video windows can be positioned and sized anywhere on the multi-screen display. Using the Vision range of capture cards combined with the Image4, high end video wall systems can be constructed supporting up to 40 displays with 128 SD windows and 32 HD/RGB/DVI windows.

Image4 Specifications

Card Format:	PCI-e x4 plug-in card
Card size:	110mm x 197mm.
Number of output channels:	4
Max output resolution:	4x1920x1200 DVI/RGB or 2x2048x1536 analog RGB.
Max number of cards per system:	10 (40 display channels).
Frame buffer memory:	2x 256MB (512MB total).
Max current at +3.3V:	0.25A.
Max current at +12V:	1.7A (Peak).
Max Power:	15 watts.
Operating temperature:	0 to 35 deg C.
Storage temperature:	-20 to +70 deg C.
Relative humidity:	5% to 90% non-condensing.
MTBF	100,000hrs
