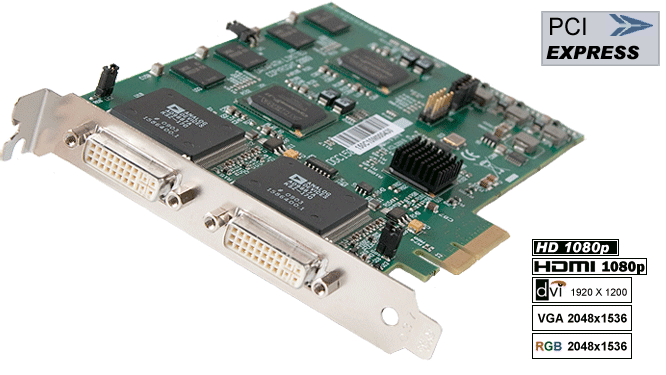

Vision RGB-E2
Scheda input a 2 canali DVI/SVGA



Supplied

Supplied Adapter/Cables

Adapter/Cables

RGB-DVI Adapter

BNC16-Cable



Optional Adapters

HDMI-DVI Adapter

Component HD-DVI Adapter



Features:

  • Component HD up to 1080P at 60 frames per second
  • HDMI up to 1080P  (1, 2)
  • DVI up to 1920 x 1200
  • VGA up to 2048 x 1536

1   Audio not supported
2   HDCP not supported

Software Included:

  • VisionRGB application for real time capture and display
  • WDM Streaming drivers for use with Microsoft Media Encoder® and other 3rd party applications
  • Software Development Kit with example application
  • Linux drivers are available to OEM customers, contact our sales department for details

Streaming Support:

DirectX WDM Streaming driver supports the following applications, to encode, record and stream video over networks or the Internet:

  • Microsoft Media Encoder®
  • VLC
  • StreamPix
  • VirtualDub
  • Adobe Flash Encoder
  • AMCap
  • Any other DirectX encoding software

Advanced Features:

  • High performance DMA to system memory or direct to graphics memory with scatter gather
  • On board processor for real time mode and sync detection
  • When used with the Datapath range of graphics adapters, the CPU load is negligible even if the image is being upscaled to a video wall, resulting in real time performance
  • The VisionRGB-E2 captures data at a maximum pixel rate of 340MHz. Once captured, the data is converted to either 555, 565 or 888 pixel and YUV modes display formats and then transferred over the PCI bus to host memory, for display on the desktop
  • Dynamic Input Source Selection
  • Administrator Mode
  • Update Indicator
  • The VisionRGB-E2 application program is also built into the Datapath Wall Control software for video wall systems



Video Walls

The VisionRGB range of capture cards are fully integrated with the Datapath family of Video Wall display products. The VisionRGB-E2 captures the display output (component HD, HDMI, analog RGB or single link DVI) from one source and then displays it as an independent application on your Video Wall.  This is done in real time, enabling you to view data from PCs, MACs, industrial/medical equipment, cameras and other video equipment.

The VisionRGB-E2 has two connectors for feeding independent data sources directly into your main PC. The VisionRGB-E2 captures the HD/HDMI/RGB/DVI data and stores it in an on-board video buffer. This data is then copied using Direct Memory Access (DMA) to the host system for display.

The VisionRGB-E2 has a powerful software application to automatically configure the timing and the format of the input source and display the captured data.

Additional Applications

The VisionRGB-E2, a stand alone PCIe x4 plug in card, delivers extreme performance with 480MB/s transfer bus bandwidth. This industry beating performance makes the VisionRGB series ideal for a wide range of applications including:

  • Medical Imaging: Capture legacy RGB modalities
  • Multi-display presentation software: Recommended by industry leaders Dataton WATCHOUT™
  • Digital Signage: Integrated by C-nario into their world class, open platform digital signage software solutions
  • Machine Vision:  Acquire high resolution camera outputs
  • Voyage Data recorders: Capture radar images
  • Simulation/Military: Acquire high resolution video and simulation for command and control

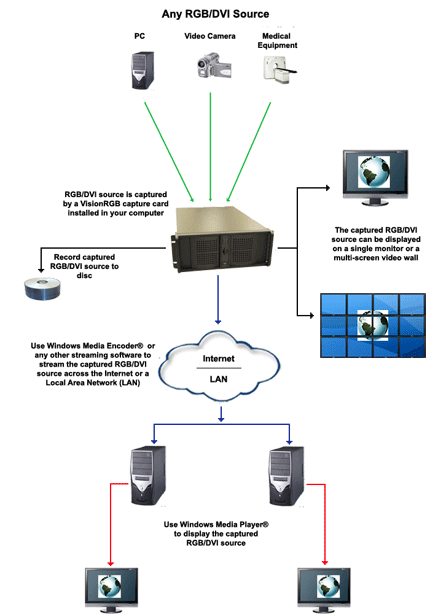

Application Guide





Clicca sull' immagine per ingrandire

Vision RGB-E2 Specifications

Board Format:

PCI-e x4 half size card, 110mm x 170mm.
PCI-e bus master with scatter gather DMA providing maximum data rate of 480MB/s.

Connectors: Two DVI-I type connectors.
Maximum Sample Rate:

170Mpixels per second analog RGB or 165 MHz DVI.
Analog modes up to 340MHz pixel clock can be captured using dual-pass sampling.
Video Sampling: RGB:  24 bits per pixel/8-8-8 format.
Video Capture Memory: 64 MB (updated in real time).  Triple buffered.
Analog RGB Mode Support: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 2048 x 1536,Custom modes.
DVI Single Link Mode Support: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920x1080, 1920 x 1200, and Custom modes.
HD Modes: 1080p,1080i, 720p, 576p, 576i, 480p and 480i using a Component HD-DVI connector (HDCP not supported).
Input Mode Detection: Automatic detection of input modes in hardware enabling the tracking of mode changes in the source signal.
Pixel Transfer Formats: RGB:  555, 565 or 888 pixels (24bit/32bit) pixels.
YUV 4:2:2,  UYVY, YUY2, YVYU
Update Rate: User defined, captured frame rate will match the source providing max data rate (480MB/s is not exceeded.

Triple buffered to eliminate tearing artifacts.
Video Format Options: Analog RGB plus HSync and VSync (5 wire).
Analog RGB with Composite Sync (4 wire).
Analog RGB with Sync on Green (3 wire).

DVI Single Link.
Operating System Support: Windows® XP Professional, Windows® Server 2003, Windows Vista®, Windows® Server 2008 and Windows® 7 (x86 and x64 Operating Systems)
Power Requirements: Max current at +3.3V - 0.25A.
Max current at +12V - 1.2A.
Max power - 15 Watts.
Operating Temperature: 0 to 35 deg C.
Storage Temperature: -20 to 70 deg C.
Relative Humidity: 5% to 90% non-condensing.
Analog Input Range: Min 0.5Vpp  Max 1.0Vpp
Input Offset: +/- 2V
Hsync: 15kHz - 110kHz
Vsync: No hardware limits, typically 25Hz - 200Hz for real signals
Separate Sync Polarity: Positive or Negative.  (Separate H & V sync, Composite Sync)
Sync On Green Polarity: Negative
Inputs 75 Ohm terminated
