Datapath Vision 800
Sistema modulare di controllo Video Walls

Features

  • Quad Core Industrial PC with 9 PCIe slots
  • Switch fabric with 100Gb/s peak system bandwith
  • 1 to 40 Display channels using the Image4 graphics card
  • 4 to 128 video capture channels using the VisionSD8 or VisionSD4+1 capture cards
  • 1 to 32 RGB/HD/DVI capture channels using the VisionRGB-E1/E2 capture cards
  • 1 or 2 Vision800X expansion chassis providing a maximum of 25 PCI express slots
  • Compatible with Datapath Wall Control software

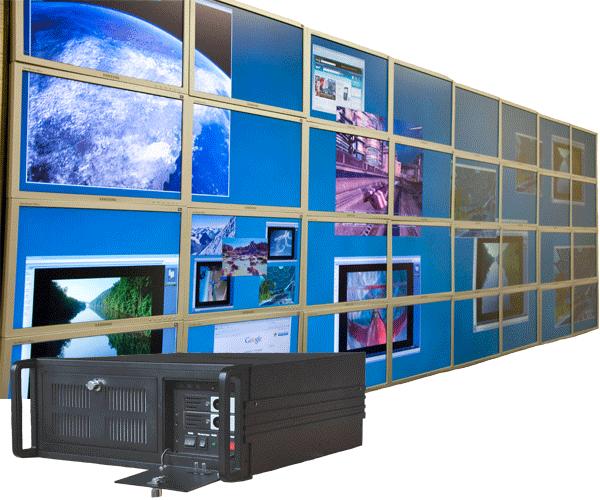

Typical Wall Controllers

The Vision800 controller is a highly expandable and flexible solution for video wall and multi-screen display applications.  The controller is optimised for operation with the latest generation of Datapath PCI express graphics and video capture cards.  The Vision800 can also be used with the Vision800X expansion chassis.



Example 1
Configuration
 2 x Image4
1 x VisionSD4+1
 Providing
 Display channels with 4 video inputs and 1 HD/HDMI/DVI/RGB capture channels



Example 2
Configuration

 4 x Image4
2 xVisionSD8
3 x VisionRGB-E2
Providing

 16 display channels with 16 video inputs and 6 HD/HDMI/DVI/RGB/ capture channels


Example 3
Configuration

 8 x Image4
3 x VisionSD8
6 x VisionSD4+1
1 x Vision800X
expansion chassis
Providing

 32 display channels with 24 video Inputs and 12 HD/HDMI/DVI/RGB capture channels

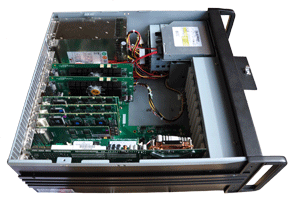

Vision800 Main System Specifications

  • 19” 4U Industrial PC chassis
  • Dimensions (approx) Length 500mm, Height 177mm, Width 439mm
  • Quad Core CPU 2.66 GHz SBC
  • 4GB DDR2 system memory
  • Express9 PCIe back plane providing 1 x 8 lane slot and 8 x 4 lane slots
  • Two 250GB removable SATA hard drives
  • One  DVD/RW combo drive
  • Two Gigabit Ethernet ports
  • VGA output.  (Can be used as a control screen)
  • 500 Watt Redundant PSU or 400 Watt ATX PSU
  • Dual cooling fans with removable air filter
  • Includes keyboard and mouse
  • Windows® 7 64bit operating system
  • Operating temperature: 0 to 35 Deg C

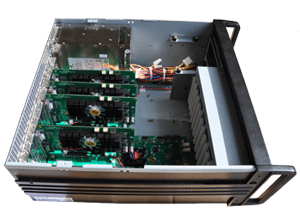

Vision800X Expansion Chassis Specifications

  • 19” 4U Industrial PC chassis
  • Dimensions (approx) Length 500mm, Height 177mm, Width 439mm
  • Express9 PCIe back plane providing 1 x 8 lane slot and 8 x 4 lane slots
  • Auto power on/off from host PC (Vision800)
  • 500 Watt Redundant PSU or 400 Watt ATX PSU
  • Dual cooling fans with removable air filter
  • Includes the Datapath H-Link, S-Link and Ex-Cable for connection to the Vision800 or host PC
  • Operating temperature: 0 to 35 Deg C
