Additional Features:

Nine slot PCIe backplane. 8 x 4 lane slots plus 1 x 8 lane slot
All slots implemented as x 16 physical connectors so any width PCIe card can be accommodated
1 x PICMG 1.3 SBC slot
ATX compatible mounting holes
Use as a PCIe expansion backplane for a standard PC using the S-Link and H-Link cards
Compatible with a standard 4U IPC chassis

S-Link and H-Link Cards

The S-Link can be used instead of a PICMG 1.3 SBC to configure the Express 9 as an expansion backplane from a standard PC or from other Express 9 backplanes by connecting to a H-Link card.

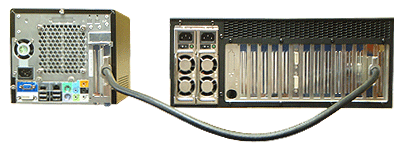

Connecting the Express9 Backplane to a Host Machine
Note: The host PC requires a PCIe x8 or x16 lane (physical) slot for installing the H-Link card.

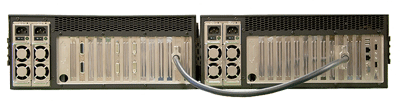

Connecting Using One Express9 as a Standard PC (SBC installed) and One Expansion Chassis

System provides up to 17 PCIe slots

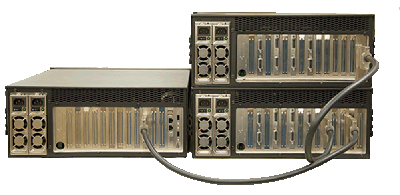

Connecting Using One Express9 as a Standard PC (SBC installed) and Multiple Expansion Chassis

System provides up to 25 PCIe slots

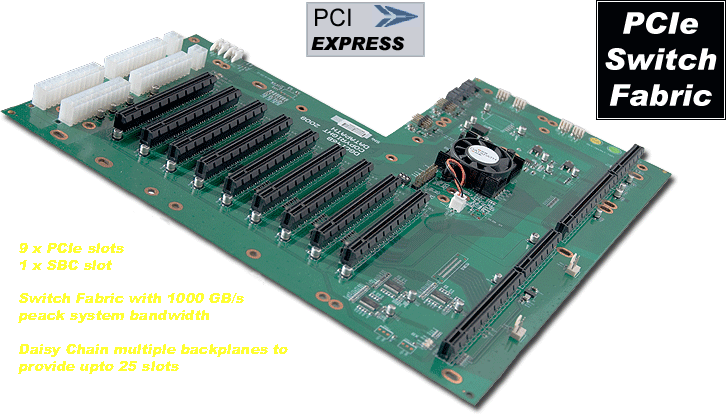

Express 9 Layout

The Express9 Product List

Express9 backplane		9 slot PCI express backplane providing 8 x 4 lane slots and 1 x 8 lane slot.
SBC1		PICMG1.3 Core2 Duo/Quad SBC with VGA, dual Gigabit LAN, SATA RAID USB2.0 and 16-bit GPIO.
S-Link		The S-Link card is a PICMG 1.3 PCIe expansion receiver card installed into the SBC slot located on the Express9 backplane. It is connected to the H-Link card using the Ex-Cable.
H-Link		The H-Link card is a host link adapter which is installed on the host machines motherboard or an Express9. It is connected to the S-Link card using the Ex-Cable.
Ex-cable		The Ex-cable is a 0.75M expansion cable used to connect the Express9 back plane to the host machine via the Ex-link and H-link cards.

Specifications:

Max Power (without SBC1)                 26W

Power Requirements                            Max current at +3.3V - 6A
                                                                    Max current at +12V – 0.5A
                                                                    Max current at +5V – 0.1A

Form Factor                                             PICMG1.3 Host SBC interface
                                                                    1 x PCIe (x8) expansion slot
                                                                    8 x PCIe (x4) expansion slots

ATX PSU                                                   4 x 24 pin power connectors
SATA Ports                                              2 x ports via PICMG1.3 interface
USB                                                           Ports 2 x ports via PICMG1.3 interface

S-Link

Max Power                                              5W
Power Requirements                           Max current at +3.3V – 0.1A
                                                                   Max current at +12V – 0.3A
                                                                   Max current at +5V – 0.1A

Form Factor                                            PCIe x 8

Environment:

Express9/S-Link/H-Link

Operating Temperature                        0 to 35 deg C
Storage Temperature                           -20 to 70 degC
Relative Humidity                                  5% to 90% non-condensing

SBC1 Specification

Features                                                   Compatible with the Express9 backplane
                                                                    PICMG1.3 Core Duo/Quad
                                                                    Dual Ethernet supported
                                                                    Dimensions 338mm x 122mm

Chipset                                                     Intel Q35 and ICH9DO
System Memory                                     1GB RAM (2GB optional
I/O Interface                                             1 x TPM connector
                                                                    6 x SATA ports with 300MB/s transfer rate supports RAID 0,1, 5 and 10
                                                                    2 x RS232 serial ports
                                                                    4 x USB 2.0 ports
                                                                    16-bit Digital I/O interface
                                                                    1 x IrDA port

Operating                                                 Temperature 0 to 60 degC
Relative Humidity                                  10% to 95% non-condensing

For details on how to purchase these products contact the sales department vendite@digivision.it .
