The VIM range of modules comprise of 4 x BNC or RCA connectors mounted on a PC back panel for feeding composite video or S-Video to the iH4-PRO/DIG and Horizon-PRO/DIG graphics adapters.

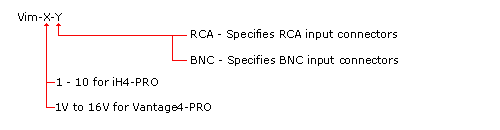

The VIM-1 is supplied with a single connector ribbon cable which will allow the VIM to be connected to a single graphics adapter. A VIM-1 is included with every Horizon 2SVW-PRO.The VIM will support up to 10 iH4-PRO cards or 16 Vantage4-PRO cards.VIM Models.X = Specifies the number of graphics cards to be connected to the VIM.Y = Specifies the type of input connector.
How to order the model you require:
Example:
1. If you are using 4 x iH4-PRO and you require RCA inputs then order VIM-4-RCA.
2. If you are using 8 x Vantage4-PRO and you require BNC inputs then order VIM-8V-BNC.

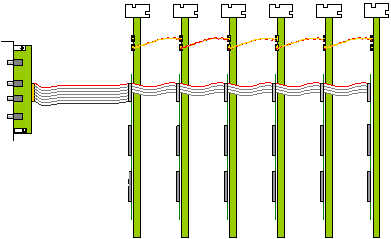

The illustration bellow shows how to connect the VIM-6 to six iH4-PROcards:
|
