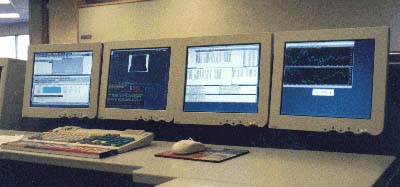

COLORGRAPHICSl'azienda leader nella produzione di schede multimonitor (top)  esempio di applicazione multimonitorcon 4 monitor LCD ibm da 17 pollici gestiti da una sola scheda EVOLUTION4 installata sul PC con windows NT 4.0..Colorgraphics produce schede multimonitorche permettono di dividere la visualizzazione del desktop di Windows supiù monitor in modo da ottenere un'area di lavoro più ampiasulla quale operare senza la necessità di aprire e chiudere continuamentefinestre Windowds come accade con i sistemi a monitor singolo.  Le schede Colorgraphics trovano valida collocazione in sale di controllo,sistemi bancari, sistemi industriali, aeroporti, sale congresso, dove lavisualizzazione conteporanea di molte pagine di dati è un fattoreindispensabile. Inoltre nei sistemi di desktop publishing, videograficao dove la visualizzazione di più immagini ne migliora le possibilitaoperative. I diversi modelli delle schede multimonitor Colorgraphics (sonodisponibili per architetture PCI, ISA e PCMCIA e vengono fornite con driverper Windows NT 4.0, Windows 95 ).

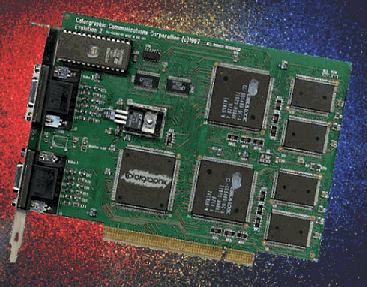

SCHEDAEVOLUTION 2/4 (top)
I nuovi modelli Evolution 2/4 con4 MegaByte per ogni processore grafico permettono visualizzazioni su ognimonitor fino a 1600 X 1280 a 256 colori o risoluzioni piu' basse con piu'colori.

Evolution Series

FOR PCI BUS

The Evolution Series is Colorgraphic's3rd generation of multi-screen video adapters for the PCI bus. A totalof four MEG of SGRAM is standard on each section of the adapters. The Evolution2 has a total of 8 MEG of video memory while the four port configuration,Evolution 4, has a total of 16 MEG of video memory. The Evolution Seriesis fully PC97 and PCI 2.1 compliant. Using Colorgraphic's free driversfor Windows 95 and Windows NT, an image can be spread across multiple monitorsto create one large virtual display. The Evolution Series, in dual or quadconfigurations, gives you a high performance multi-screen video adaptertoday, to meet the system requirements of tommorrow.  Evolution 2Evolution Series for PCI Bus

FEATURES and SPECIFICATIONS

POWERFUL FEATURES

  • PC97 Compliant
  • Two or four independently programmable CirrusLogic CL-GD5480 accelerators
  • Hardware based graphic operations
  • 200 MHz video DAC for extended resolutionsup to 1600x1200x64k, non-interlaced @ 70Hz
  • VGA compatible
  • Increased Windows performance
  • High color and True color support

VlDEO MEMORY

  • 800 Mbytes/sec. peak memory bandwidth
  • 4 MEG SGRAM each section standard

BUS ARCHITECTURE

  • 32 bit PCI 2.1 compliant
  • Multiple boards can be installed in a singlesystem
  • Adapters use a single PCI slot

ACCELERATOR FUNCTIONS

  • 64-bit high-bandwidth SGRAM interface
  • BitBlts
  • Font Acceleration
  • Hardware cursor
  • Rectangle fills

FREE SOFTWARE SUPPORT

  • Windows 95
  • Windows NT

PART NUMBERS

  • Evolution 2 PCI 612182


  • Evolution 4 PCI 612184 Soluzione multimonitor studiata daDigivision con 4 monitor su scheda Evolution 4

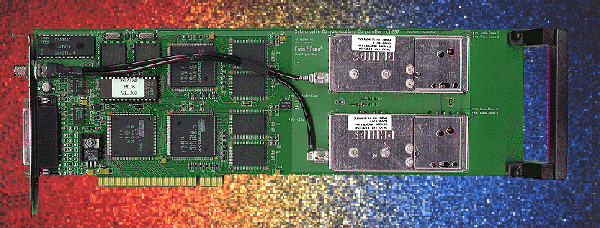

SCHEDATWIN TUNA  (top)
il modello Twin Tuna ha un doppiosintonizzatore TV ed ingresso video ed è ideale laddove oltre aidati del computer si debbano tenere sotto controllo telecamere o trasmissionitelevisive.

Twin 'Tuna'

FOR PCI BUS

Colorgraphic's Twin 'Tuna' (Patent Pending)uses the latest in memory and graphics accelerator technology along withunsurpassed video overlay capabilities. Independent cable ready tunersfor each video section allows viewing of a different TV channel on eachscreen. Using Colorgraphic's free drivers for Windows 95 and Windows NT,an image can be spread across multiple monitors to create one large virtualdisplay. The Twin Tuna' gives you high quality TV overlay combined witha high performance multiscreen video adapter. Twin 'Tuna'Twin 'Tuna' for PCI Bus

FEATURES and SPECIFICATIONS

POWERFUL FEATURES

  • PC97 Compliant
  • Two independently programmable Cirrus LogicCL-GD5480 accelerators
  • Two independently programmable cable readytuners
  • Two composite NTSC/PAL and two S-Video externalvideo inputs
  • Master/Slave audio output for tuner audio
  • Slave audio input for external source or daisy-chainwith multiple cards
  • Independent (scalable to full screen) videooverlay on each screen
  • Hardware based graphic operations
  • 200 MHz video DAC for extended resolutionsup to 1600x1200x64k, non-interlaced @ 70Hz
  • VGA compatible
  • Increased Windows performance
  • High color and True color support

VlDEO MEMORY

  • 800 Mbytes/sec. peak memory bandwidth
  • 4 MEG SGRAM each section standard

BUS ARCHITECTURE

  • 32 bit PCI 2.1 compliant
  • Multiple boards can be installed in a singlesystem
  • Adapters use a single PCI slot (10 inch card)

GRAPHICS ACCELERATOR FUNCTIONS

  • 64-bit high-bandwidth SGRAM interface
  • BitBlts
  • Font Acceleration
  • Hardware cursor
  • Rectangle fills

VIDEO ARCHITECTURE

  • 16 bit YUV 422 digital video
  • TV Tuner or external CVBS analog video routableto external monitor or VCR/VTR
  • External CVBS and S-Video inputs (2 each)routable to either video section
  • Color, brightness and contrast controls
  • Cable ready TV tuner available in many formats,NTSC, PAL I, PAL B/G

AUDIO ARCHITECTURE

  • Variable line level output, direct connectto PC sound card or amplifier
  • Bass and Treble controls
  • Spatial/Psuedo stereo enhancement for TV audio
  • External input for multiple cards or otheraudio source (DSS/VCR/Laser Disc)

OUTPUT/INPUT CONNECTORS

  • All audio/video connectors are on one HD44pin cable
  • 2 HD15 (VGA outputs)
  • 2 RCA phono in (composite video input)
  • 2 RCA phono out (routed composite video output)
  • 2 Mini DIN in (S-Video input)
  • 3 Stereo mini phone jacks (Master/slave audioout, slave audio in)
  • F type for cable TV

FREE SOFTWARE SUPPORT

  • Windows 95

  • Windows NT

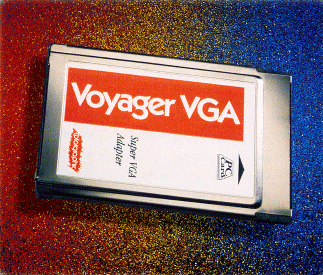

SCHEDAVOYAGER  PERPCMCIA (top)

Voyager VGA Adapter

FOR PCMCIA

Available April 98'

Ideal for speeches and presentations, ourVoyager brings the power of multi-screen to handheld PCs. With the VoyagerVGA, you can display your presentation on large monitors or a projectionsystem, with slide previews, controls and notes on the HPC's display. Integratesbeautifully with your presentation software to make your presentationssmoothly polished. It's ideal for OEMs who are interested in generatinga secondary display from a handheld PC. Also, software publishers and OEMscan take advantage of a second video output and create custom applicationsfor any presentation need. Voyager PCMCIAVoyager VGA for PCMCIA

FEATURES

  • VGA compatible output
  • Resolutions supported: 640x480 and 800x600at 256 colors
  • 8 MB Flash memory available

VIDEO MEMORY

  • 512k DRAM standard

BUS ARCHITECTURE

  • PCMCIA
  • Adapter uses a single type ii or iii slot

FREE SOFTWARE SUPPORT

    Windows CE 2.0

MULTI-MONITOR
