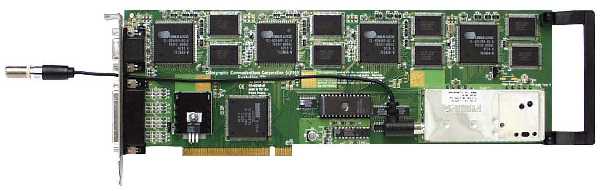

NOVITA': EVOLUTION TV Colorgraphic

La scheda Evolution TV della Colorgraphics è disponibile in versioni che vanno dalle 2 alle 4 porte multischermo video. Con l' aggiunta di ulteriori opzioni video è possibile posizionare una finestra video in qualsiasi schermo.
Usando il Tuner si possono avere ingressi Super Video e Composito. Usando il software Colorgraphis per Windows 95 / 98 e Windows NT, un' immagine puo essere allargata su piu monitor per creare un grande schermo virtuale.

CARATTERISTICHE

      PC97 Compliant
      Multiple independently programmable Cirrus Logic CL-GD5480 accelerators
      Composite NTSC/PAL and S-Video external video inputs available
      Audio output for tuner audio and input external source
      Independent (scalable to full screen) video overlay on each screen
      Onboard VGA to NTSC/PAL conversion available
      Hardware based graphic operations
      200 MHz video DAC for extended resolutions up to 1600x1200x64k, non-interlaced @ 70Hz
      VGA compatible
      Increased Windows performance
      High color and True color support

MEMORIA VIDEO

      800 Mbytes/sec. peak memory bandwidth
      4 MEG SGRAM each section standard

ARCHITETTURA DEL BUS

      32 bit PCI 2.1 compliant
      Multiple boards can be installed in a single system
      Adapters use a single full length PCI slot

FUNZIONI ACCELERATE

      64-bit high-bandwidth SGRAM interface
      BitBlts
      Font Acceleration
      Hardware cursor
      Rectangle fills

ARCHITETTURA VIDEO

     16 bit YUV 422 digital video
     One composite input and one S-Video input
     Color, brightness and contrast controls

ARCHITETTURA AUDIO

     Variable line level output, direct connect to PC sound card or amplifier
     Bass and Treble controls
     Spatial/Psuedo stereo enhancement for audio
     Input for external audio sources (DSS/VCR/Laser Disc)

CONNESSIONI INGRESSI E USCITE

      2-4 HD15 VGA outputs
      RCA phono composite input
      Mini DIN S-Video input
      2 Stereo mini phone jacks (Audio out, Audio in)
      4 RCA phono composite outpus (VGA to NTSC/PAL option)

AGGIORNAMENTI SOFTWARE GRATUITI

     Windows 95/98
     Windows NT 4.0

MODELLI

     Evolution 3 TV PCI 612185-3V (3 port VGA with TV tuner/overlayoption)
     Evolution 4 TV PCI 612185-4V (4 port VGA with TV tuner/overlay option)
     Evoluiotn 4 TV PCI 612185-4T (4 port VGA with TV out option)

PROCESSORE CL-GD5480

MEMORIA VIDEO 4 MEG SGRAM PER SEZIONE

COLORI RISOLUZ.SUPPOR. REFRESH.SUPPOR.

256 1600x1200
1280x1024
1024x768
800x600
640x480 48/60/70 Hz
43/60/75/85/100 Hz
43/60/70/75/85/100 Hz
56/60/72/75/85/100 Hz
60/72/75/85/100 Hz

64k 1600x1200
1280x1024
1024x768
800x600
640x480 48/60/70 Hz
43/60/75/85/100 Hz
43/60/70/75/85/100 Hz
56/60/72/75/85/100 Hz
60/72/75/85/100 Hz

16.7 Million 1280x1024
1024x768
800x600
640x480 43/60/75 Hz
60/70/75/85/100 Hz
56/60/72/75/85/100 Hz
60/72/75/85/100 Hz

Nota: TUTTI GLI STANDARD VGA SONO SUPPORTATI

PROCESSORE	CL-GD5480
MEMORIA VIDEO	4 MEG SGRAM PER SEZIONE
COLORI	RISOLUZ.SUPPOR.	REFRESH.SUPPOR.
256	1600x1200 1280x1024 1024x768 800x600 640x480	48/60/70 Hz 43/60/75/85/100 Hz 43/60/70/75/85/100 Hz 56/60/72/75/85/100 Hz 60/72/75/85/100 Hz
64k	1600x1200 1280x1024 1024x768 800x600 640x480	48/60/70 Hz 43/60/75/85/100 Hz 43/60/70/75/85/100 Hz 56/60/72/75/85/100 Hz 60/72/75/85/100 Hz
16.7 Million	1280x1024 1024x768 800x600 640x480	43/60/75 Hz 60/70/75/85/100 Hz 56/60/72/75/85/100 Hz 60/72/75/85/100 Hz
Nota: TUTTI GLI STANDARD VGA SONO SUPPORTATI
