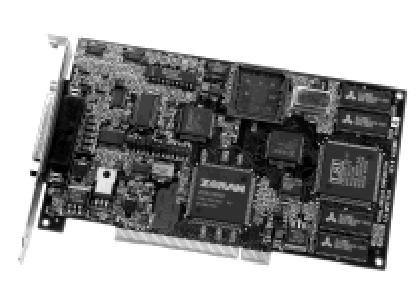

REELTIME PLUS

The ReelTime Plus is the single channel member of the ReelTime family. Capable of providing a composite, S-video or RGB output along with balanced stereo audio the ReelTime Plus rounds out the suite of MPEG-2 decode PCI cards from Visual Circuits. A genlock/video switching (GL) option allows this 1/2 length PCI card to genlock to an external composite video source, while providing seamless software A/V switching between external and internal video and audio.

SPECIFICHE:

Video Output: composite, s-video or RGB, NTSC or PAL
Audio Output: MPEG-1, MPEG-2 stereo CD-quality (MUSICAM), balanced output
Form Factor: 1/2 length PCI, single slot
Decompression: MPEG-1 ISO 11172 and MPEG-2 ISO 13818; Decodes Main Profile at Main Level, program or elementary audio and video streams
Maximum Bit Rate: 15 mbps per channel
Genlocking: Snap-In socket chip
Audio Control: volume and tone control on-board

DOCUMENTO PDF con specifiche tecniche


Visual Circuits e' un produttore leader nel settore delle schede di decodifica MPEG-1 / MPEG-2 multimonitor ed offre una serie di schede PCI e anche sistemi completi.
