Predator ProMedia

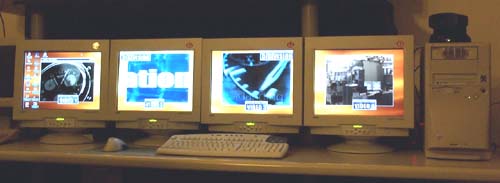

In questa immagine si nota il PC nel quale e'
installata la scheda Predator Promedia che oltre a visualizzare il canvas di Windows su
4 monitors e' in grado anche di effettuare l'overlay di ben 4 segnali video ( YC e
composito ) sul desktop; miscelando cosi' la grafica ed i programmi che girano su Windows
con filmati o riprese da telecamera per generare un innovativo sistema di comunicazione ad
alto impatto visivo ( Promedia si puo' collegare a schermi di PC, LCD, display al plasma,
proiettori, retroproiettori, ecc... )

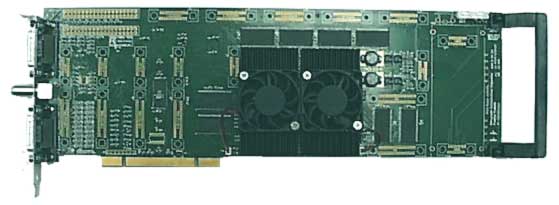

Predator ProMedia is a multimedia product designed to meet many video overlay,
presentation and video wall applications. Based upon the successful Predator Pro Series
but, with 16 Meg of video memory standard. Both 2 and 4 port analog VGA PCI versions will
be available with an optional DVI flat panel monitor output. The Predator ProMedia
replaces many previous Colorgraphic Desktop Video products with new option cards to
configure it specifically for your needs. The base board when configured with video
decoders will have up to 4 software selectable composite and S-Video inputs (8 total).
Other options are listed below.
|
POWERFUL FEATURES
- PC99 Compliant
- Y2K Compliant
- Two or four independently programmable S3 Savage4 accelerators
- Hardware based graphic operations
- 300 MHz video DAC for extended resolutions of 1600x1200, non-interlaced @ 85Hz
- Power Management
- DDC Monitor Communications
- DVI flat panel monitor option
VIDEO MEMORY
- 143 MHz SGRAM @ 1144 Mbytes/sec. peak memory bandwidth
- 64 bit Synchronus Memory Bus
- 16 MEG frame buffer on each port standard
BUS ARCHITECTURE
- 32 bit PCI 2.1
- Multiple boards can be installed in a single system
- Adapters use a single PCI slot
2D ACCELERATOR FEATURES
- Highly optimized 128 bit Graphics Engine
- BitBlt, Rectangle Fill, Line Draw
- Polygon Fill, Font Acceleration
- Hardware cursor
- 8, 16, and 32 bpp mode acceleration
3D ACCELERATOR FUNCTIONS
- Single Cycle 3D achitecture
- 128 bit rendering pipeline
- S3 Texture Compression (S3TC)
- Hardware bump mapping
- 32 bit true color rendering
- Specular Lightning and Diffuse Shading
- Alpha Blending Modes
- Full scene anti-aliasing
- Vertex and Table Fog
- 16 or 24 bit Z-buffering
- Sprite Anti-Aliasing, Reflection and Environment Mapping, Texture Morphing
- Shadows, Procedural Textures and Atmospheric Effects
OPTION BOARDS
- NTSC/PAL/SECAM Video Decoder, 1-4 per card
- NTSC/PAL Encoder (VGA-to-TV Out), 1-4 per card
- DVI Flat Panel Monitor, 2 or 4 per card
- VIP I/O (digital video input/output), 1-5 per card
- DVD/MPEG Hardware Decoder, 1 per card
- Television Tuner, 1per card
- Audio Processor, 1 per card
Not all options can be used simualtaneously.
Please consult sales for specific configurations and limitations
FREE SOFTWARE SUPPORT
- Windows 95/98/2000
- Windows NT 4.0
PRODUCT CODE
Popular configurations for the Pro Media
- ProMedia 1 Video (1 Video decoder 1 Video window + Tuner)
- ProMedia 4 Video (4 Video decoder 1 Video window + Tuner)
- ProMedia 4 TV (4 TV outputs composite or S-video no Tuner)
- ProMedia 1Video 4TV (1 Video in +4 TV outputs + Tuner)
- ProMedia 4 Video 4TV (4 Video in +4 TV outputs + Tuner)
- ProMedia DVI (4 x Digital VGA out no Video no Tuner)
- ProMedia 1 Video DVI (4 x Digital VGA out 1Video + Tuner)
- ProMedia 4 Video DVI (4 x Digital VGA out 4Video + Tuner)
Further configurations without TV Tuner or Sound Processor
- ProMedia 1 Video NT (1 Video decoder 1 Video window No TV Tuner)
- ProMedia 2 Video NT (2 Video decoders 2 Video windows No TV Tuner)
- ProMedia 3 Video NT (3 Video decoders 3 Video windows No TV Tuner)
- ProMedia 4 Video NT (4 Video decoders 4 Video windows No TV Tuner)
If a configuration that you require does not appear in the above list.
Please contact sales for specific configurations and pricing.
Informazioni sulla
scheda Predator ProMedia in formato PDF
|
