Digivision - DV 2 YUV

Digivision DAC 1 PRO
convertitore da DV / DVCAM a YUV Betacam

Prezzo promozionale IBTS e SMAU 2001... Telefonateci

in pronta consegna

Converte da DV / DVCAM a YUV Component , Y/C e video composito ed inoltre da Y/C super VHS o video composito a DV, DVCAM.
Ideale per utilizzi amatoriali e professionali.

Trasforma qualsiasi apparecchiatura DV-DVC in un sistema con ingressi ed uscite anche in analogico (YUV component, Y/C super vhs e video composito) ideale per applicazioni professionali.

Technical Features

l DIVIO NW701 Hardware DV CODEC for encoding and decoding of video in standard DV format.

l Support multiple audio/video sources input of S-Video, Composite Video, stereo audio and IEEE1394 DV data stream.

l Support multiple audio/video output of S-Video, Composite Video, stereo audio, IEEE1394 DV and component YUV video output.

l Build-in stereo audio CODEC for perfect A/V synchronization without time delay.

l Fully compliant to IEC 16884 and DV-SD “Blue book” standard.

l Compatible to most of DV Camcorder interface, perfect application for non-linear video editing system.

l DV to YUV video real-time output conversion for broadcasting video application.

l Easy to import A/V signal to DV output for PC editing or for recording back to DV tape by DV Camcorder.

l Standalone system design, Plug-To-Use, no software installation requirement.

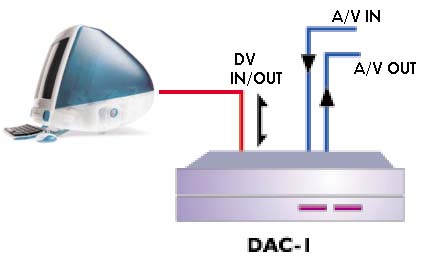

	Import Analog A/V Signal into Mac, PC or NoteBook Now you can import your analog video files into your Mac or PC in DV formats! The DAC-1 converts the analog video and audio signals into DV formats so that you can use your computer to edit your videos. When you are finished, simply send the DV files back through the DAC-1, where they are converted to analog signals and can then be recorded onto tape.
	Import Analog A/V Signal into a DV Camcorder Use your DV camcorder to record your existing videos onto DV tape. Most DV camcorders can not accept analog signals. By using the DAC-1 as a converter, you can transfer your existing videotape to DV tape with no loss of quality.
	Connect to Audio/Video Capture Card to be a DV interface Non-LinearEditor "Use the DAC-1 to allow your current analog A/V Capture Card to receive output directly from you DV Camcorder. The DAC-1 provides real time conversion with no dropped frames."
	DV to Component Y:U:V Signal Format Converter You can convert your DV tape to Beta cam format for a high quality copy for broadcast purpose.

Specifications

	Video format Analog Video at CCIR601 NTSC and PAL Standard IEEE1394 (Firewire™ / i.LINK™ ) DV interface by DV25 format at YUV 4:1:1 NTSC/PAL or YUV 4:2:0 PAL 25Mb/sec bit rate.
	Video Inputs: Y/C (S-Video) mini DIN Composite Video (RCA) DV (IEEE1394/i-Link) 4-pin connector
	Video Output: Y/C (S-Video) mini DIN Composite Video (RCA) DV (IEEE1394/i-Link) 4-pin connector YUV component Video out by BNC connectors
	Stereo Audio Inputs/output: Stereo Analog Audio 20Hz – 20KHz RCA Support DV audio format in 48K, 44.1K and 32KHz by 12-bit or 16-bit
	Power supply DC9V, 1.2A
	Dimension 8.3x7.7x2.1 inches (210x195x52mm)
	Weight 2.64lbs / 1.2kg
	Accessories A/V cables S(Y/C) cable IEEE1394 mini DV cable A/C Adapter

DIGIVISION srl Viale Piave 3 - 20129 MILANO Italy
telefono ++39 02 7600 7932 fax ++39 02 7601 6305
per contattarci e-mail: vendite@digivision.it

Import Analog A/V Signal into a DV Camcorder Use your DV camcorder to record your existing videos onto DV tape. Most DV camcorders can not accept analog signals. By using the DAC-1 as a converter, you can transfer your existing videotape to DV tape with no loss of quality.

Connect to Audio/Video Capture Card to be a DV interface Non-LinearEditor "Use the DAC-1 to allow your current analog A/V Capture Card to receive output directly from you DV Camcorder. The DAC-1 provides real time conversion with no dropped frames."

DV to Component Y:U:V Signal Format Converter You can convert your DV tape to Beta cam format for a high quality copy for broadcast purpose.

Import Analog A/V Signal into a DV Camcorder

Use your DV camcorder to record your existing videos onto DV tape. Most DV camcorders can not accept analog signals. By using the DAC-1 as a converter, you can transfer your existing videotape to DV tape with no loss of quality.

Connect to Audio/Video Capture Card to be a DV interface Non-LinearEditor

"Use the DAC-1 to allow your current analog A/V Capture Card to receive output directly from you DV Camcorder. The DAC-1 provides real time conversion with no dropped frames."

DV to Component Y:U:V Signal Format Converter

You can convert your DV tape to Beta cam format for a high quality copy for broadcast purpose.
