New Studio Genlock (SG) version now available!

CORIOscan Pro SG Released

Based on the sophisticated technology of the CORIOscan Pro, Vine have now developed an even better scan convertor which addresses the demands of the Post Production /Broadcast market... the CORIOscan Pro SG!
Now providing the much requested Studio Genlock feature and twice as much video memory as the CORIOscan Pro, the output quality of the CORIOscan Pro SG is superb, delivering exceptional clarity and full 24 bit colour information.
Useful in the post production studio set up, Vine has integrated horizontal and sub-carrier phase control to assist in vision mixing and colour accuracy when editing. The unit supports resolutions of up to 1600 x 1200 with no line dropping, at horizontal scan rates of up to 100kHz and has 6 line flicker reduction. The CORIOscan Pro SG is compatible with PC, Apple Macintosh and Workstations, is PAL and NTSC switchable and the choice of using YUV, RGB, S-Video, Composite Video with separate sync. outputs, make it compatible with a vast array of equipment.

Scarica la brochure della serie Corioscan Pro in formato PDF

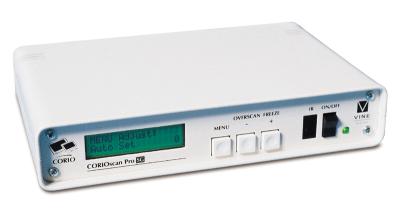

CORIOscan Pro SG desktop

The CORIOscan Pro offers high performance scan conversion from virtually any source* to virtually any video output you need. The CORIOscan Pro incorporates a host of features for the discerning user. For the corporate user it becomes a powerful assistant for Presentations, Conferences and Exhibitions.
For the video professional it provides quality results, with various outputs, for video productions etc.

A CORIOscan Pro SG version is now available. This uses the latest CORIO technology to provide not only full Genlock features for better integration into a studio environment, but also a crisper and more detailed picture.
Both CORIOscan Pro units (ie. the standard version and the SG version) come in three versions. A desktop version for corporate use, and both a Single Rackmount and a Double Rackmount version, incorporating two CORIOscan Pro units, for professional/studio use.

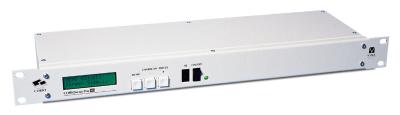

CORIOscan Pro SG single rack-mount

All versions support resolutions of up to 1600x1200 with no line dropping, and at horizontal scan rates of up to 100kHz. Suitable for PC, Apple Macintosh and Workstation computers, the units are NTSC and PAL switchable, with Composite Video, S-Video, RGB, YUV and composite or separate syncs, making it compatible with a vast range of equipment.

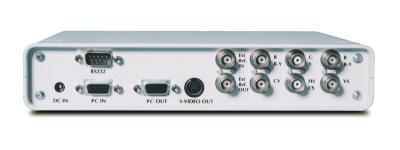

CORIOscan Pro SG desktop, showing rear connections

One powerful feature of the CORIOscan Pro is the AutoSet facility. This automatically positions and sizes the computer resolution on to the video display. This setting is then saved in non-volatile memory and is recalled whenever this resolution is used again. Manual adjustment of the display setting is also available via various control methods.

Powerful though it may be, ease of use of the CORIOscan Pro has not been overlooked. Controllable via the built in LCD display, Remote Control and RS232 control, all the features can be accessed at the touch of a button.
In addition the CORIOscan Pro remote control can act as a mouse to enable the computer to be controlled from a distance within presentations etc.
Other features include user adjustable Overscan and Underscan settings, 2x Zoom and Panning, and high level flicker reduction control.

Main features include:

Digital Processing & Filtering for high quality
High level flicker reduction control (2/4/6 lines)
1600x1200 max. resolution with no line dropping
Works with PCs, Macs*, workstations*
Front-panel, infra-red remote & RS232 control of all functions
Autoset feature makes setup very easy
2x Zoom & Pan
Freeze function via internal frame store
User definable Overscan/Underscan sizes
Microsoft serial mouse emulation via Infra-red remote

The CORIOscan Pro range is the ideal peripheral for getting large screen displays from computers (even laptops), and for incorporating computer text and graphics into video presentations and post production. It also makes the perfect accessory to your company presentation set-up, making it easier for people to view your computer presentations in training seminars and corporate meetings.

The CORIOscan Pro SG version offers everything that the standard version does, but with twice the amount of video memory and full genlock facilities, it's even better suited to integration with other video equipment in a professional studio. It also uses Vine's latest RC03 infra-red remote control, making its control even easier - and the addition of a front-panel lock facility ensures that control doesn't fall into the wrong hands.

Input Specifications

Compatibility

PC, Macintosh*, workstations*

Resolutions

Maximum 1600x1200 with no line dropping
24kHz (15kHz on SG version) to 100kHz horizontal scan rate
Virtually any vertical scan rate accepted - horizontal scan rate is more important

Synchronization

Separate TTL-level Hsync & Vsync positive or negative going
Composite sync (0.3v to 1.0v peak-peak negative, or TTL level negative)
Sync on green

Colours

24 bit compatible (superior colour handling on SG)

Output Specifications

Signals

PAL & NTSC switchable
Composite Video: 1 volt peak-peak on BNC
S-Video on 4-pin mini-DIN
RGB 0.7v p-p or Y R-Y B-Y switchable on BNCs
TTL HSync/Comp.Sync, VSync on BNC
SCART cable provided with European versions

Image Scaling & Positioning

Proprietary scaling method - no line dropping
Auto-set feature automatically scales computer image to fit TV
Underscan & Overscan settings user-adjustable
2x Zoom & panning

Image enhancement & filtering

Switchable Horizontal Softening improves recordability
Proprietary 2, 4 or 6 line flicker reduction

Internal settings memory

Non-volatile memory to hold settings for different screen resolutions
User definable start-up features

Control Methods

Intelligent micro-controller eases use
Infra-red remote control supplied
Control via push buttons & LCD display
Control via RS232 port.

Sub-carrier lock & sync pulses

Sub carrier locked to line frequency (when genlock in-active on SG)
Adjustable SC/H phase
Sync pulse widths conform to TV standards

Studio Genlock features - on CORIOscan Pro SG only

Independently locks to sync & subcarrier.
Subcarrier lock range +/- 150Hz NTSC, +/- 200Hz PAL.
User subcarrier adjustment +/- 100Hz.
Subcarrier phase adjustment over full 360 degree range.
Subcarrier lock phase jitter 0.5 degrees.
Horizontal sync adjustment +/- 0.5us.
Above values are approximate, and most depend on reference signal.

General

Professional metal case
Optional 19" 1U rack-mount versions: Single - incorporating 1x CORIOscan Pro unit, Double - incorporating 2x CORIOscan Pro units
12v DC (regulated or smoothed) min. 500mA required.
Optional Apple Macintosh & Workstation cable packs.
Optional Serial cable for RS232 and mouse control

*Requires extra lead pack for computers without 15-pin VGA connectors.
