The new internal PCI/ISA version was released on 31st January 2001

The CORIOgen Eclipse offers high quality computer to video conversion from virtually any source* to virtually any video output you need, plus the ability to genlock and overlay on to an existing video signal.

They have all the functionality of the CORIOscan Select scan convertor (except dual outputs), but with the addition of Composite Video and S-Video input connectors, high quality genlock circuit with noise cancellation circuit, digital keyer, video mixer and fader. The units are designed to replace our earlier VineGen / MultiGen / DeltaScan GL units.

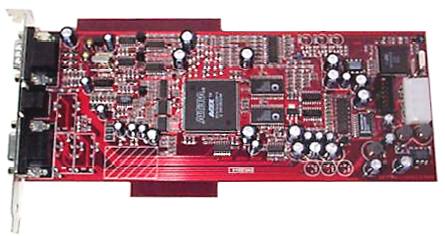

CORIOgen Eclipse PCI/ISA internal card in PCI format
(PCB colour may vary.)

As well as the external version, the unit is also available as the CORIOgen Eclipse PCI/ISA dual-format card (as shown above) - where you can simply remove the end-bracket, turn the card through 180 degrees, and replace the end-bracket to change from one format to another. Designed specifically for system integration, the card removes the need for external power supplies and greatly reduces the length of cables usually used. A full PDF data-sheet is now available for this product here.

The PCI or ISA slots in your computer are used solely for holding the unit in place - no data or power connections are made to either of them. This prevents bus signal or timing compatibility issues, and means that the unit can even be mounted in other types of enclosure.

The internal version takes power from a spare hard-disk drive connector and is supplied with video breakout cables - so you still have the same range of signals as the external version. No Remote Control is supplied for the internal card version - this is an optional extra, and requires a small Infra-Red Receiver Module (available from Vine) to work. As standard, RS232 is the sole method of control (cable included for 9-pin D connectors on your PC), using either your own software or Vine's CORIO Control Panel (included).

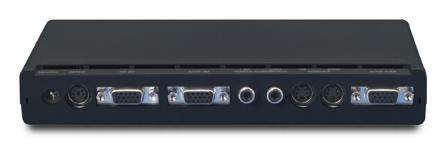

Rear of external CORIOgen Eclipse

For both versions (internal and external) the computer graphics fed into the unit are converted into standard PAL or NTSC video signals, and overlayed on to the incoming video signal by the mixer. To keep the quality high, at no point is the incoming video signal decoded - the computer signal is inserted / mixed into the incoming video signal, without degrading the source picture quality or affecting sync and subcarrier timing phase.

The units also have Vine's AutoSet facility - this automatically positions and sizes the computer image. This setting is then saved in non-volatile memory and is recalled whenever this resolution is used again. Manual adjustment of the display setting is also available via various control methods.

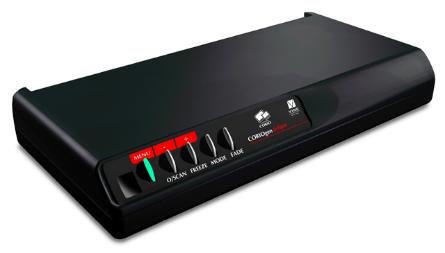

For the external CORIOgen Eclipse, an easy to use remote control for control of features is also included, along with On Screen Display. In addition, the remote control can simulate a Microsoft® Serial Mouse - perfect for controlling presentations from a distance.

Both versions also feature RS232 control, adjustable Overscan and Underscan settings, 2x Zoom and Panning, Freeze, and Flicker Reduction control.

Features for the external CORIOgen Eclipse and internal CORIOgen Eclipse PCI/ISA include:

  • High quality computer to video scan conversion
  • Full feature video genlock with overlay
  • Overlays and fades between either the Composite Video or S-Video inputs, and the computer image
  • Incoming video picture is not decoded, for optimum picture quality
  • Absolute maximum of 1600x1200 resolution
  • 4-line flicker reduction for super-stable image on TV
  • Automatic screen adjustment
  • 2x Zoom & pan
  • No driver software required
  • Composite Video, S-Video, RGB outputs (overlay not available on RGB)
  • Loop-back to VGA monitor, even when unit not powered
  • NTSC & PAL switchable
  • Non-volatile memory saves all settings - so you can make the unit start-up in a specific mode (eg. Overlay)
  • Compatible with very high refresh rates
  • Professional image quality - crisp and clear
  • Brightness Control - allows video output from the unit to be adjusted to match other video hardware, such as playback of a video tape.
  • RS232 interface for control of unit from your software

The external CORIOgen Eclipse also includes:

  • Full-feature infra-red remote control
  • "Quick Adjust" buttons for Overscan, Freeze, Overlay Mode and Fade
  • Button Lock feature prevents settings being altered by accident
  • Remote control Lock-out perfect for education and exhibitions
  • On-screen display for ease of use
  • Microsoft® Serial Mouse emulation on infra-red remote control

The CORIOgen Eclipse is the ideal peripheral for overlaying computer generated text and graphics onto standard TV video signals, with powerful yet simple to use features. The external version makes the perfect accessory to your company presentation and video editing set-up, whilst the internal card version is most suited to system integrators.


Input Specifications

  • Absolute maximum 1600x1200
  • Maximum 1024x768 (NTSC) or 1280x1024 (PAL) with no line dropping
  • 24 bit compatible
  • Approx. 24kHz to 100kHz horizontal scan rate
  • Virtually any vertical scan rate accepted - horizontal scan rate is more important
  • Separate TTL-level HSync & VSync positive or negative going

Output Signals

  • Standard VGA output to go back to monitor
  • PAL & NTSC switchable
  • Composite Video: 1 volt peak-peak on a phono socket
  • S-Video: 1 volt peak-peak on 4-pin mini-DIN
  • RGB 0.7v p-p with switchable positive or negative going composite sync signal
  • Internal version uses breakout cables to provide video input & output connections

Genlock / Overlay features

  • Independently locks to sync & subcarrier.
  • Digital sync noise cancellation improves use with VCRs.
  • Subcarrier lock range +/- 200Hz NTSC, +/- 250Hz PAL approx.
  • Subcarrier phase adjustment +/-12 degrees.
  • Mixer modes: PC Out, Genlock, Overlay, Mix.
  • Built-in fader fades computer image in and out.
  • Digital keyer, with adjustable key-level and variable hard/soft-key.
  • Variable fade speed - from instant to 2.5 seconds.

Image Scaling & Positioning

  • Proprietary scaling method
  • AutoSet feature automatically scales computer image
  • Underscan & Overscan settings user-adjustable
  • 2x Zoom & panning Image filtering
  • Proprietary 2 or 4 line flicker reduction

Control of unit (external CORIOgen Eclipse)

  • Infra-red remote control supplied
  • Control via front-panel push buttons
  • Control using buttons and on-screen display
  • Control via RS232 port
  • Emulation of Microsoft® Serial Mouse via RS232 port

Control of unit (internal CORIOgen Eclipse PCI/ISA)

  • Optional Infra-red remote control (requires Infra-Red Receiver Module) - also allows low-level access using on-screen display menu
  • Control via RS232 port (cable included)
  • Reset switch accessible from rear of unit.

Power requirements (external CORIOgen Eclipse)

  • Consumes approx. 350mA @ 12v.
  • Voltage requirements: minimum 12 volts DC, absolute maximum 16v DC.
  • Requires 'centre-pin positive' 2.1mm DC power plug input.
  • Reverse polarity protected.
  • Internal 1.6A fuse.

Power requirements (internal CORIOgen Eclipse PCI/ISA)

  • Requires spare 4-pin hard-disk drive connector within computer.
  • Consumes approx. 350mA @ 12v. (5v signal on connector not used.)
